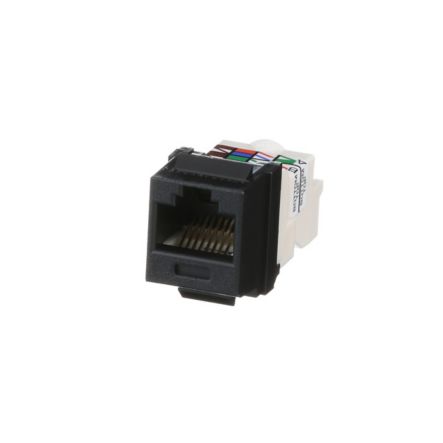

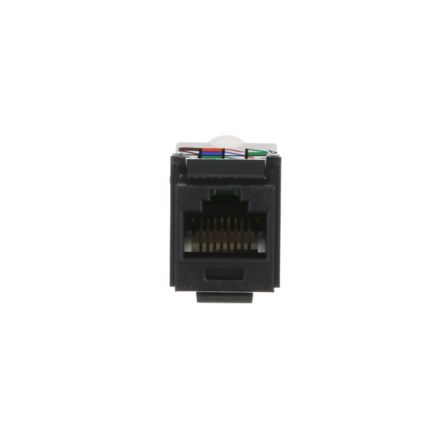

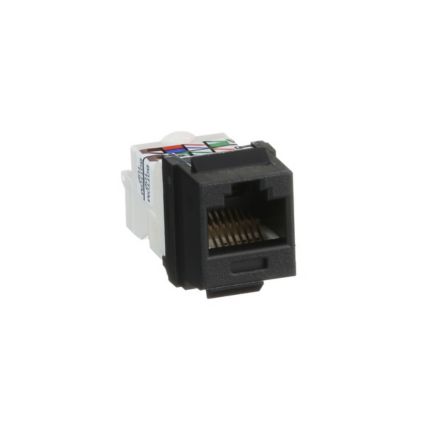

Panduit NK6TMBL | UTP RJ45 Cat 6 Keystone Jack Module, Black
Description
Description
The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is black.
Panduit NK6TMBL - JACK CAT6 - 1-PORT MOD JACK 110 8W8P UTP
Specifications
Specifications
Panduit - NK6TMBL - Product Categories
- Copper Systems
- Jack Modules
Panduit - NK6TMBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6TMBL |
| Item Description | UTP RJ45 Cat 6 Keystone Jack Module, Black |
| Note | TP style termination |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TP Style |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Black |
| Standards Met | Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant |
| Overall Depth (In.) | 1.43 |
| Overall Depth (mm) | 36.3 |
| Overall Height (In.) | 0.76 |
| Overall Height (mm) | 19.3 |
| Overall Length (In.) | 1.43 |
| Overall Length (mm) | 36.3 |
| Overall Width (In.) | 0.58 |
| Overall Width (mm) | 14.7 |
Panduit - NK6TMBL - Package Information
| UPC | 07498343802 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
