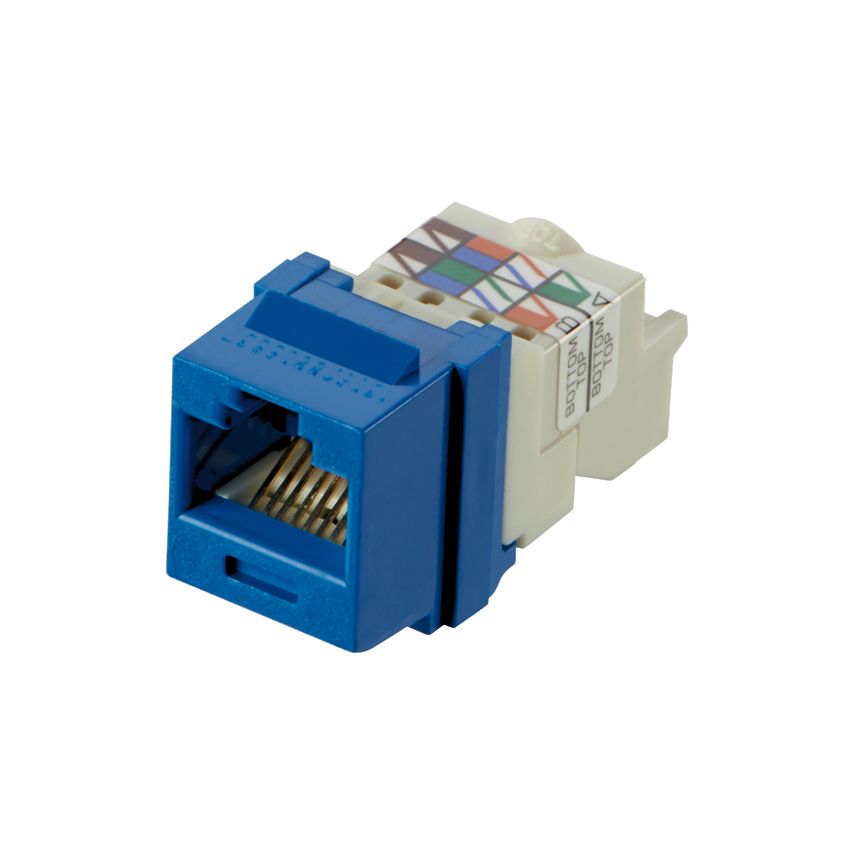

Panduit NK6TMBU | UTP RJ45 Cat 6 Keystone Jack Module, Blue
Description
Description
Invest in a future-proof network with our Cat 6 jack module. Built for superior performance, it handles demanding applications in your office or workspace.
The NetKey Cat 6 UTP TP Keystone Jack Module is designed to terminate 4-pair, 22"26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for sup erior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is blue.
Panduit NetKey Keystone Jack Module, 8-Position 8-Wire Cat6 TP Style, Surface Mount, 1-Port, For Use With: 10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, 4/16 Mbps Token Ring and Voice Over Internet Protocol, ABS/Polycarbonate, Blue, 0.58 in L x 1.43 in W x 0.76 in H
Panduit - NK6TMBU - Features
- Confidence that each jack module delivers specified performance
- Provides strain relief, helps control cable end radius and securely retains wires in place
- Can terminate with optional termination tool
- Universal keystone jack modules snap in and out of all Net Key faceplates, modular patch panels, and surface mount boxes for fast moves, adds, and changes
- Marked with quality control number for future traceability
- Mini-Com TX6 PLUS jack modules are available in standard, keyed, corrosive resistant, shuttered and coupler versions for unshielded installations, standard and keyed versions available for shielded installations, all in multiple termination styles
Specifications
Specifications
Panduit - NK6TMBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6TMBU |
| Category | Category 6 |
| Color | Blue |
| Number Of Ports | 1 |
| Termination | 110 |
| Wiring | A/B Universal |
| UNSPSC Code | 39121444 |
| Note | TP style termination |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TP Style |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Standards Met | Meets all ANSI/TIA-568.C2 Category 6 and ISO 11801 2nd Edition Class E Channel Standard Requirements at Swept Frequencies up to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant |
| UPC | 07498343823 |
Panduit - NK6TMBU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
Panduit - NK6TMBU - Videos
| Panduit NK6TMBU Video 1 | Click to View |
|---|
