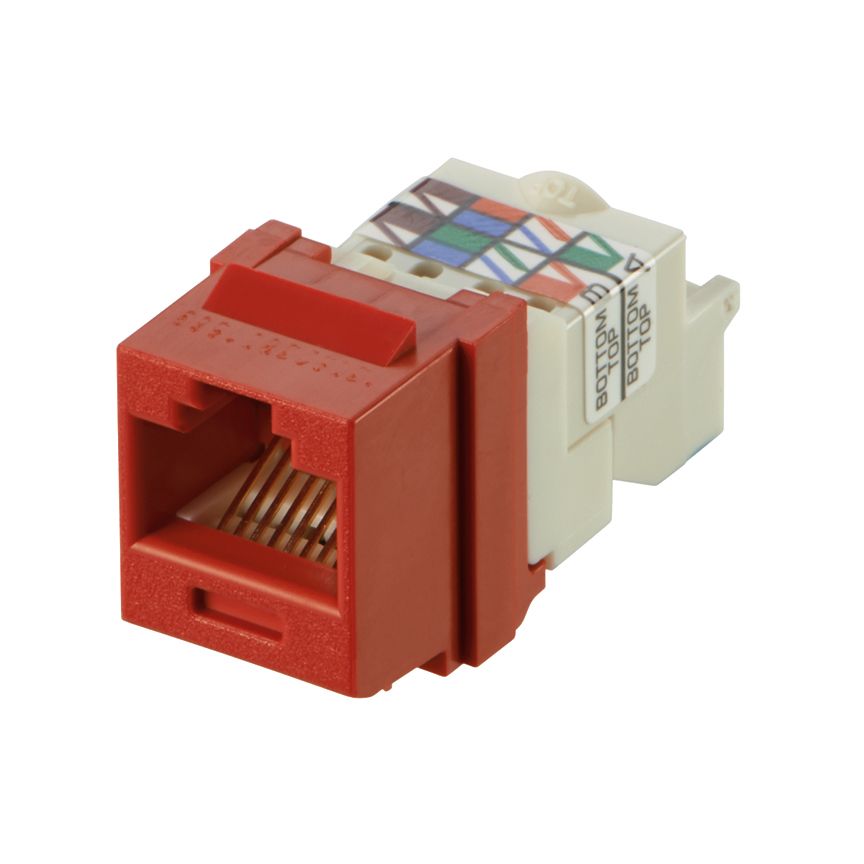

Panduit NK6TMRD | NetKey Cat 6 TP Jack, Red
Regular price
$11.69
Unit price
Brand: Panduit
|
SKU:
282093
Regular price
$11.69
Unit price
Description
Description
Panduit NK6TMRD | NetKey Cat 6 TP Jack, Red
Invest in a future-proof network with our Cat 6 jack module. Built for superior performance, it handles demanding applications in your office or workspace.
Category 6, 8-position, 8-wire Keystone jack module, red.
Panduit NetKey Keystone Jack Module, 8-Position 8-Wire Cat6 TP Style, Keystone Module, Surface Mounting, 1 Ports, ABS, Red, 0.58 in L x 1.43 in W x 0.76 in H Dimensions
Panduit - NK6TMRD - Features
- Confidence that each jack module delivers specified performance
- Provides strain relief, helps control cable end radius and securely retains wires in place
- Can terminate with optional termination tool
- Universal keystone jack modules snap in and out of all Net Key faceplates, modular patch panels, and surface mount boxes for fast moves, adds, and changes
- Marked with quality control number for future traceability
- Mini-Com TX6 PLUS jack modules are available in standard, keyed, corrosive resistant, shuttered and coupler versions for unshielded installations, standard and keyed versions available for shielded installations, all in multiple termination styles
Specifications
Specifications
Panduit - NK6TMRD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6TMRD |
| Category | Category 6 |
| Color | Red |
| Number Of Ports | 1 |
| Termination | 110 |
| Wiring | A/B Universal |
| UNSPSC Code | 39121444 |
| Note | TP style termination |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TP Style |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Red |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| UPC | 07498343820 |
Panduit - NK6TMRD - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
Panduit - NK6TMRD - Videos
| Panduit NK6TMRD Video 1 | Click to View |
|---|
