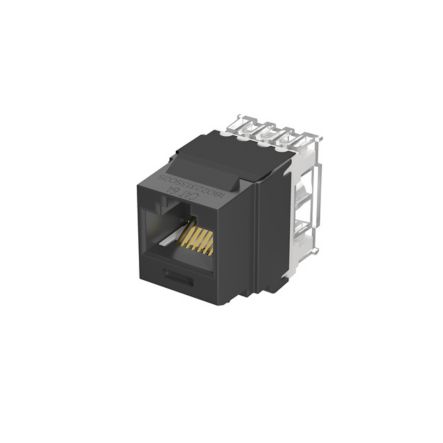

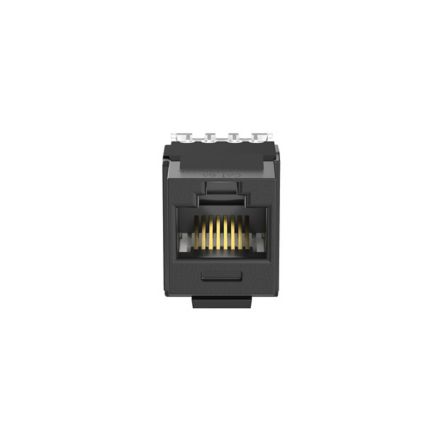

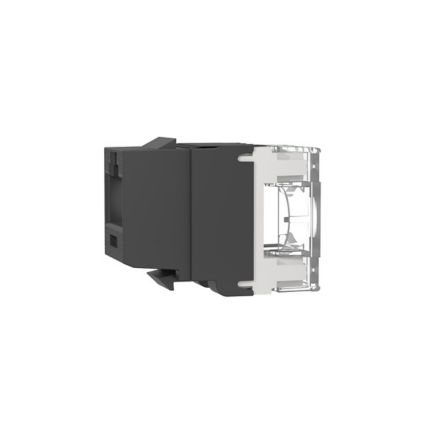

Panduit NK6X88MBL | Category 6A Netkey Punchdown Module, Black
Regular price
$15.83
Unit price
Brand: Panduit
|
SKU:
668567
Regular price
$15.83
Unit price
Description
Description
Panduit NK6X88MBL | UTP RJ45 Cat 6A Keystone Punchdown Jack Module, BL
The NetKey Cat 6A UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is black.
Specifications
Specifications
Panduit - NK6X88MBL - Product Categories
- Copper Systems
- Jack Modules
Panduit - NK6X88MBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6X88MBL |
| Item Description | UTP RJ45 Cat 6A Keystone Punchdown Jack Module, BL |
| Note | Punchdown style termination |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Black |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant |
| Overall Depth (In.) | 1.16 |
| Overall Depth (mm) | 29.5 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
Panduit - NK6X88MBL - Package Information
| UPC | 07498372220 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
