Panduit NK6X88MGR-Q | UTP RJ45 Cat 6A Keystone Punchdown Jack Modul...
Description
Description

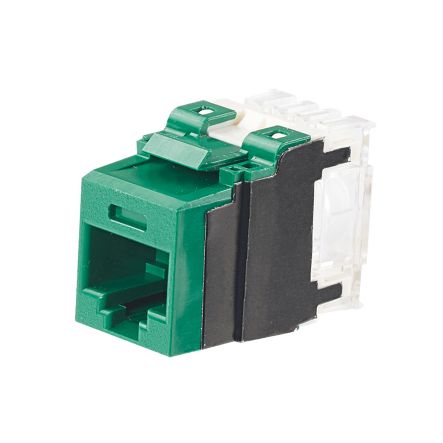

The NetKey Cat 6A UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each jack is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is green and includes 25 per package.
Panduit NK6X88MGR-Q | MODULE | CATEGORY 6A NETKEY PUNCHDOWN
Specifications
Specifications
Panduit - NK6X88MGR-Q - Product Categories
- Copper Systems
- Jack Modules
Panduit - NK6X88MGR-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NK6X88MGR-Q |
| Item Description | UTP RJ45 Cat 6A Keystone Punchdown Jack Module, GR |
| Note | Punchdown style termination; convenience pack of 26 |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Green |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant |
| Overall Depth (In.) | 1.16 |
| Overall Depth (mm) | 29.5 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
Panduit - NK6X88MGR-Q - Package Information
| UPC | 07498306772 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0362 |
| Standard Ctn. Quantity | 250 |
| Standard Ctn. Volume (cf) | 0.3621 |
