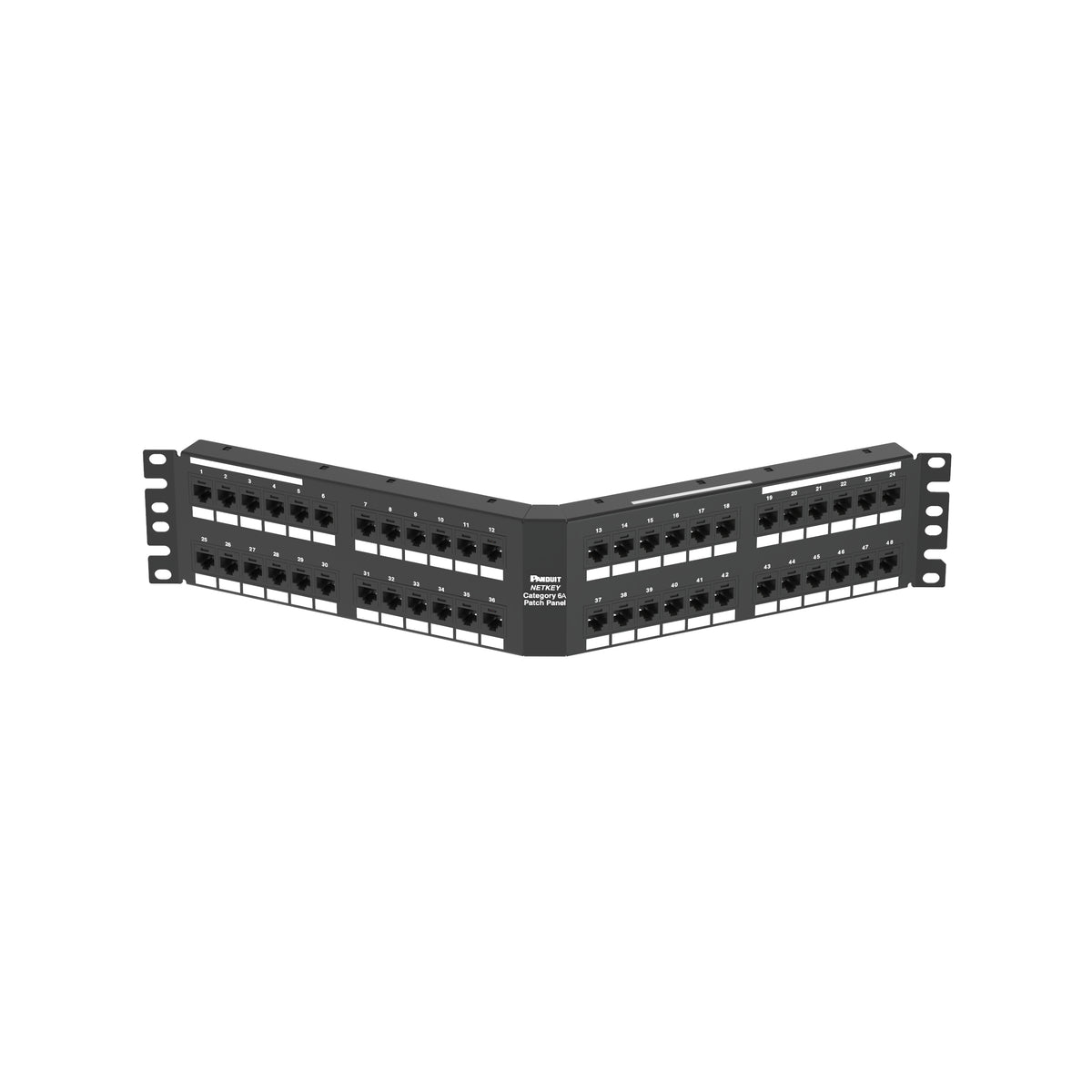

Panduit NKA6XPPG48Y | Patch Panel Kit | UPC - 07498307054

The NetKey Cat 6A UTP Angled Punchdown Patch Panel terminates 4-pair, 22–26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 48 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The angled design facilitates proper bend radius control and minimizes the need for horizontal cable managers. This punchdown patch panel is 2 RU, made of steel, and is black.

---

Panduit NKA6XPPG48Y Key Specs

Product Type	Patch Panel Kit
Termination Style	Punchdown
Patch Panel Style	Angled
Performance Level	Category 6A
Material	CRS
Wiring Scheme	T568A/T568B
Number of Ports	48
Module Type	RJ45
Number of Rack Units	2
Overall Width (In.)	19
Overall Width (mm)	482.6
Sub Brand	NetKey
Overall Depth (In.)	4.75
Overall Depth (mm)	120.6
Overall Height (In.)	3.47
Overall Height (mm)	88.1
Identification Type	Adhesive Label
Color	Black
Standards Met	Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz. Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at swept frequencies up to 500 MHz,Complies with ANSI/TIA-1096A (formerly FCC Part 68); IEC 60603-7, Supports IEEE 02.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 and RoHS Complaint
Maximum Operating Temperature (°C)	65
Maximum Operating Temperature (°F)	149
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	-14
Overall Length (In.)	4.75
Overall Length (mm)	120.6
