Panduit NKDLCMZBL | Netkey Netkey Network Component
Regular price
$18.45
Unit price
Brand: Panduit
|
SKU:
683123
Regular price
$18.45
Unit price
Description
Description
Panduit NKDLCMZBL | Netkey Netkey Network Component

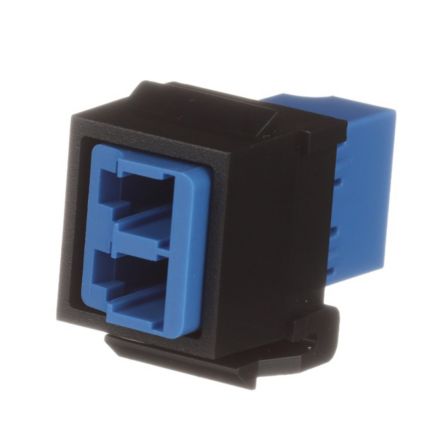

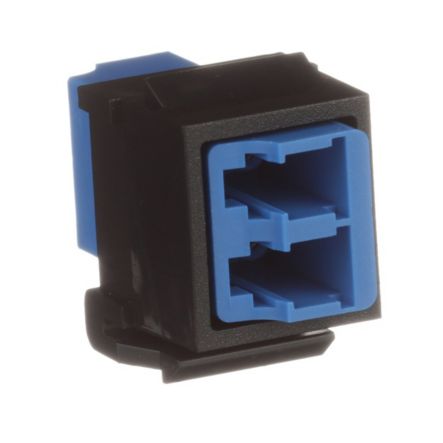

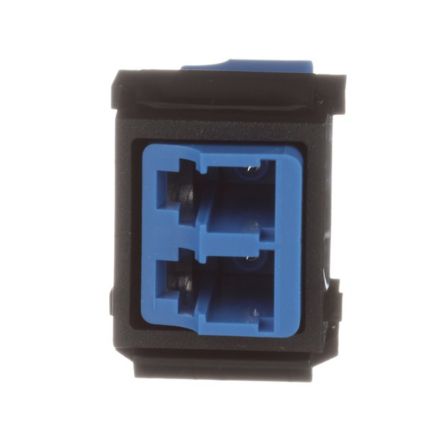

The NetKey Singlemode Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two LC connector pairs in one module space and features a blue fiber adapter along with a black module and has zirconia split sleeves.
Panduit - NKDLCMZBL - Features
- Panduit NetKey LC Adapter, Keystone Module, LC-Duplex Connector, For Use With: Keystone Telecommunications Room Products and Work Area Outlets, Black
- Provides an adapter split sleeve material option to fit specific network requirements
Specifications
Specifications
Panduit - NKDLCMZBL - Product Categories
- Fiber Optic Systems
- Fiber Optic Adapters
Panduit - NKDLCMZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NKDLCMZBL |
| Item Description | Netkey Netkey Network Component |
| Sub Brand | NetKey |
| Body Style | Duplex |
| Fiber Type | OM3 |
| Material | Zirconia Ceramic |
| Overall Length (In.) | 1.73 |
| Overall Length (mm) | 43.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | NetKey Network Component |
| Application | Can be used with keystone telecommunications room products and work area outlets |
| Color | Blue |
| Module Color | Black |
| Connection Type | LC-Duplex |
| MPN: | NKDLCMZBL |
| Color: | Black |
| Connector Type: | LC-Duplex |
| Suitable For Use With: | Keystone Telecommunications Room Products and Work Area Outlets |
| Type: | Keystone Module |
Panduit - NKDLCMZBL - Package Information
| UPC | 07498365721 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0038 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.0378 |
