Panduit NKDLCMZWH | NetKey Network Component
Regular price
$16.63
Unit price
Brand: Panduit
|
SKU:
683126
Regular price
$16.63
Unit price
Description
Description

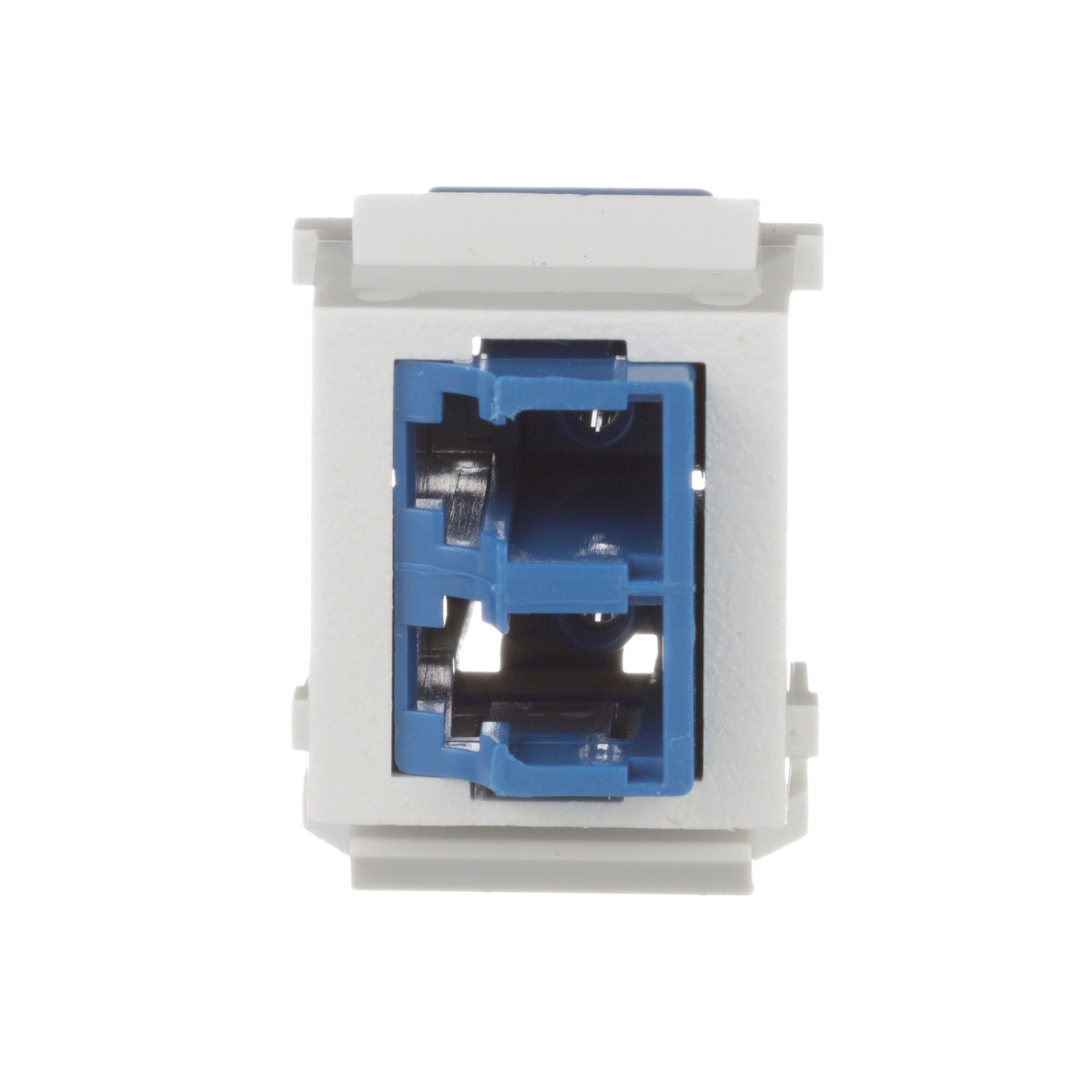

Panduit NKDLCMZWH | NetKey Network Component
NK module supplied with one LC Sr./Jr. SFF duplex adapter with zirconia ceramic split sleeves. White.
Panduit NetKey Keystone Module, Duplex LC Connector, Single Mode Fiber, For Use With: Keystone Telecommunication Room Product and Work Area Outlet, Blue/White
Panduit - NKDLCMZWH - Features
- Self-locking head design speeds installation and locks into place at any length along the tie body
- Polyester coating provides additional edge protection and prevents corrosion between dissimilar metals
- UV-resistant, low smoke, halogen-free material
- Integrated panel retention clips no metal clips to become bent, damaged or lost, simplex adapter clips automatically adjust for FOCIS-10 compliant panel thickness variations for improved mounting
- Short flange design for improved modularity and higher density usage
Specifications
Specifications
Panduit - NKDLCMZWH - Specifications
| Connector Type | Lc |
|---|---|
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | NetKey |
| Body Style | Duplex |
| Fiber Type | OM1, OM2, OM3, OM4, OS2 |
| Material | Zirconia Ceramic |
| Overall Length (In.) | 1.73 |
| Overall Length (mm) | 43.9 |
| Standards Met | Meet or exceed TIA/EIA-455-21 and TIA/EIA-568-C.3. TIA/EIA-604 FOCIS-10 compatible. RoHS compliant |
| Product Type | NetKey Network Component |
| Application | Can be used with keystone telecommunications room products and work area outlets |
| Color | Blue |
| Module Color | White |
| Connection Type | LC-Duplex |
| Part Features | Provides an adapter split sleeve material option to fit specific network requirements |
| UPC | 07498365719 |
Panduit - NKDLCMZWH - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
