Panduit NKFD1W12BUDSCZ | NetKey Fiber Optic Drawer
Description
Description

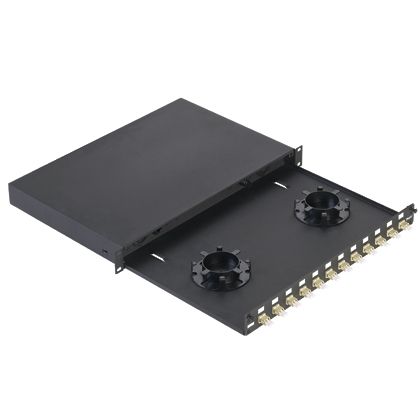

Streamline data center fiber optic management with our fiber drawer, offering a pre-configured solution for easy installation, labeling of terminations, and connections within a 1RU enclosure.
The NetKey Fiber Drawer comes preloaded with 12 SC Duplex adapters for OS1/OS2 single-mode fiber. It features zirconia split sleeves.
Pre-loaded fiber drawers provide a pre-configured, ready to install system for managing fiber optic terminations. The pre-loaded enclosure is a two piece design with a slide out drawer for full access to all fiber terminations and easy installation. The fiber drawer has integral mounting brackets suitable for installation in any 19 in W EIA-310/IEC 60297 compatible rack or cabinet.
Panduit NetKey Fiber Optic Enclosure, 2-Piece Slide Out Pre-Loaded, (12) SC Duplex Terminal, Wiring Code: OS1/OS2, Panel Mounting, Metal, Black
Panduit - NKFD1W12BUDSCZ - Features
- Multiple cable entry methods
- Dedicated labeling areas
- Factory configured with 6, 12 or 24 duplex SC, LC or 12 duplex E2000 adapters for fast and easy cabling and installation
Specifications
Specifications
Panduit - NKFD1W12BUDSCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NKFD1W12BUDSCZ |
| Connector Type | Sc Duplex |
| Enclosure Type | Netkey |
| Fiber Count | 12 |
| UNSPSC Code | 43223328 |
| Number of Ports | 12 |
| Number of Rack Units | 1 |
| Product Type | Fiber Optic Drawer |
| Fiber Type | OS1/OS2 |
| Connector Type | SC Duplex |
| Sub Brand | NetKey |
| Color | Black |
| Adapter Color | Blue |
| Overall Depth (In.) | 12.13 |
| Overall Depth (mm) | 308.2 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Overall Height (In.) | 1.73 |
| Overall Height (mm) | 43.9 |
| Standards Met | EIA-310/IEC 60297, RoHS compliant |
| Application | Fiber Optic Cable Management |
| Part Features | Factory configured with duplex SC or LC adapters for fast and easy cabling and installation |
| UPC | 07498328660 |
Panduit - NKFD1W12BUDSCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8537.10.9150 |
Documents and Downloads
Documents and Downloads
- Panduit NKFD1W12BUDSCZ Specification Sheet
- Panduit NKFD1W12BUDSCZ Line Cards
- Panduit NKFD1W12BUDSCZ Data Sheets
- Panduit NKFD1W12BUDSCZ Line Cards
- Panduit NKFD1W12BUDSCZ Part Drawings
- Panduit NKFD1W12BUDSCZ Line Cards
- Panduit NKFD1W12BUDSCZ Line Cards
- Panduit NKFD1W12BUDSCZ Line Cards
- Panduit NKFD1W12BUDSCZ RoHS Statement
