Panduit NKFP52ELLLSM001 | LC Patch Cord | UPC - 07498391341
Regular price
$23.72
Unit price
Brand: Panduit
|
SKU:
686054
Regular price
$23.72
Unit price
Description
Description

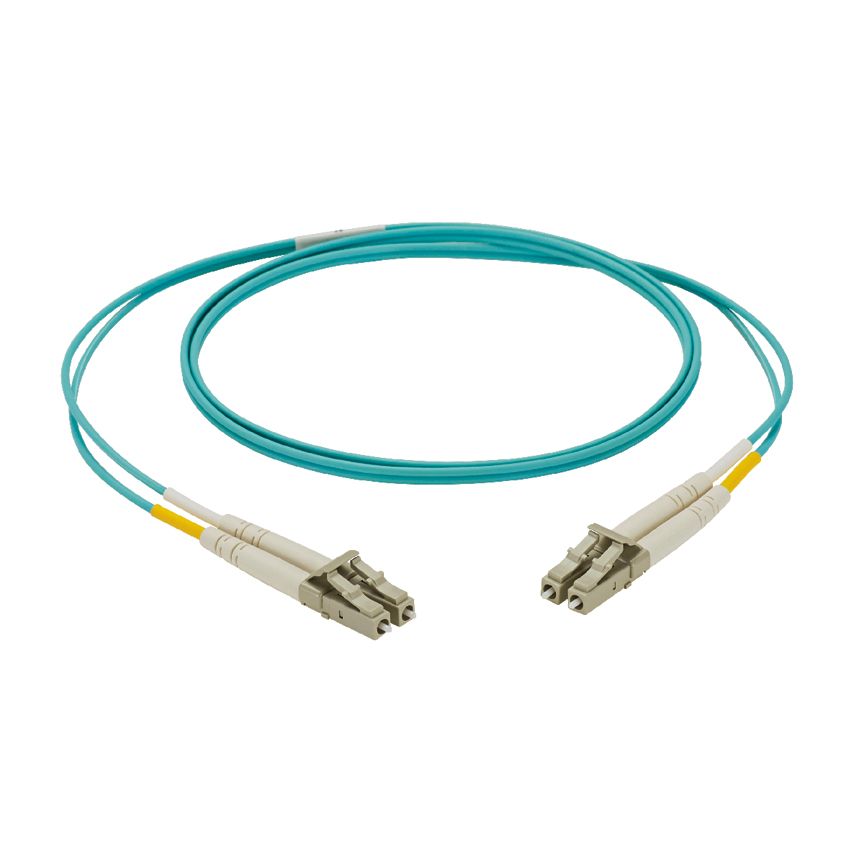

NetKey 2-fiber OM2 LC duplex to LC duplex patch cord, low smoke zero halogen (LSZH) rated with 1.6mm jacket, 1m
Panduit NKFP52ELLLSM001 Key Specs
| Fiber Type | OM2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 0.99 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | LC Patch Cord |
| Sub Brand | NetKey |
| Part Features | Riser rated patch cords support installations that require this flame rating in specific environments |
Panduit NKFP52ELLLSM001 Data Sheets
| Data Sheets | NetKey Fiber Optic Patch Cords and Pigtails – OFNR and LSZH | Download and View |
| Part Drawings | NetKey Patch Cords and Pigtails: M01302DD-DC | Download and View |
| Line Cards | NetKey Cabling System | Download and View |
| Line Cards | NetKey Cabling System (Spanish): NKLC37--SA-UKE | Download and View |
| Line Cards | NetKey Cabling System (Middle East): NKLC35--SA-UKE | Download and View |
