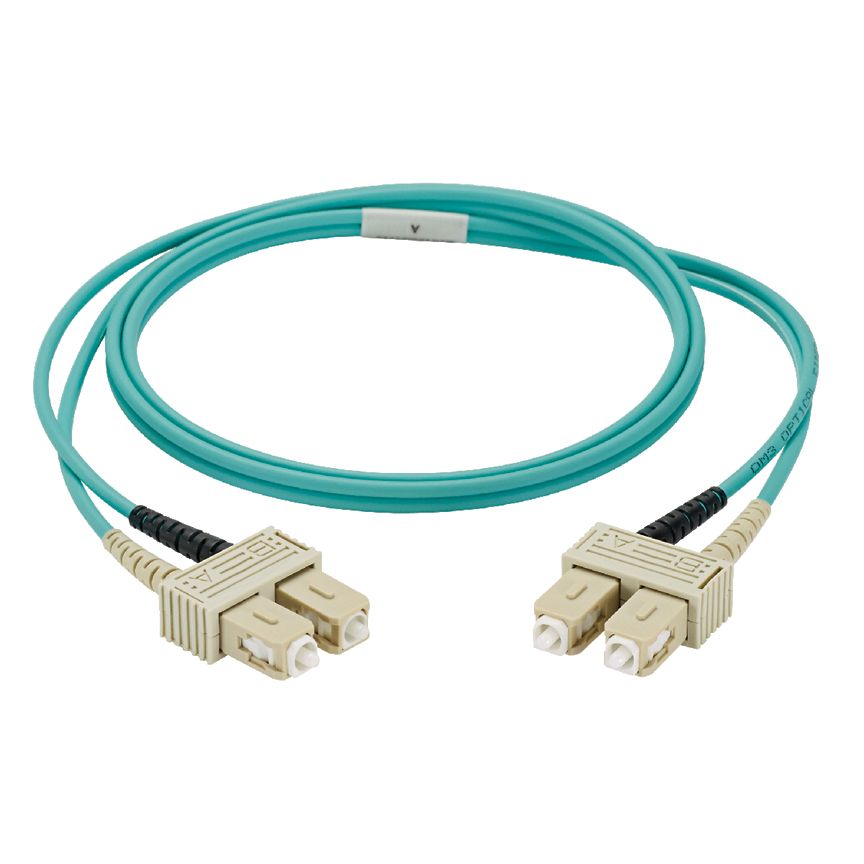

Panduit NKFP623RSSSM005 | Fiber Optic Patch Cord
Description
Description
NetKey fiber optic patch cords include duplex LC, SC and ST connectors on both ends and pigtails include simplex LC, SC and ST on one end and open (un-terminated) on the other end. Patch cords and pigtails meet requirements of TIA/EIA-568-C.3-1. The fiber connectors are FOCIS compliant or compatible and meet the requirements of TIA/EIA-455-21A. Quality control reference label provides lifetime traceability of test data.
Panduit NetKey Fiber Optic Patch Cord, Duplex OM1 Multi-Mode Riser, 2 Fibers, 16.4 ft Length, SC to SC Connector, 62.5 um Core, 125 um Clad, Orange Jacket
Panduit - NKFP623RSSSM005 - Features
- Provide electrical continuity to Panduit Wyr-Grid system and most industry standard ladder rack eliminate the need to remove paint and drill holes for grounding jumpers, saving labor
- Maintains a 2 in distance from grounding conductors and other cables in the pathway
- Supports grounding conductors above or below pathways, enables bonding to pathway sections and across pathway junctions when required
- Pre terminated on both ends
- Complies with all industry requirements to ensure a high level of safety and reliability
- Bonds the rack or cabinet to the (TGB)
- Jumper is pre-terminated on one end with LCC6-14JAWH-L and the other end with LCC6-14JAW-L
Specifications
Specifications
Panduit - NKFP623RSSSM005 - Specifications
| Fiber Type | OM1 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 16.4 |
| Overall Length (m) | 4.99872 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.118 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | NetKey |
| Part Features | Riser rated patch cords support installations that require this flame rating in specific environments |
| UPC | 07498392743 |
Panduit - NKFP623RSSSM005 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
