Panduit NKFP92ERLLSM003 | Fiber Optic Patch Cord
Description
Description

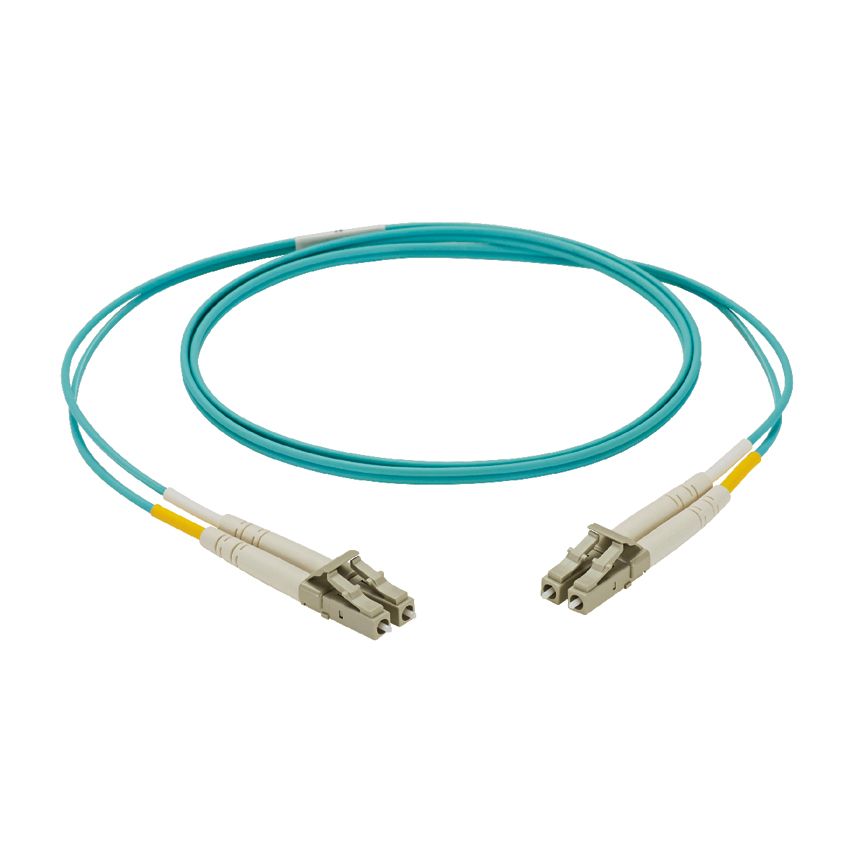

The NetKey 2 Fiber Patch Cord is an OS2 patch cord with LC Duplex connectors. It is Riser (OFNR) rated, with a 1.6mm jacket, and is 3 meters in length.
NetKey fiber optic patch cords include duplex LC, SC and ST connectors on both ends and pigtails include simplex LC, SC and ST on one end and open (un-terminated) on the other end. Patch cords and pigtails meet requirements of TIA/EIA-568-C.3-1. The fiber connectors are FOCIS compliant or compatible and meet the requirements of TIA/EIA-455-21A. Quality control reference label provides lifetime traceability of test data.
Panduit NetKey Fiber Optic Patch Cord, Duplex OS2 Single Mode Riser (OFNR), 2 Fibers, 9.84 ft Length, LC to LC Connector, 9 um Core Dimension, 125 um Clad Dimension, Yellow, 140 deg F
Panduit - NKFP92ERLLSM003 - Features
- Rear pivot latch design, robust construction
- Low profile latch resists cable snagging
- Wide positive grip thumb latch
- Audible click upon successful mating
- Field installable duplex clip with integrated polarity markers
- One connector body design for both simplex and duplex applications
- Protective cap locks onto connector latch with audible click
- Anaerobic adhesive field installation
- Rugged body construction
- Independent free floating ferrules
Specifications
Specifications
Panduit - NKFP92ERLLSM003 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Os2 |
| Length | 3 M | 9.84 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 50 |
| Overall Length (ft.) | 9.84 |
| Overall Length (m) | 3 |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Environment | Indoor |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Boot Color | Electric Ivory |
| Sub Brand | NetKey |
| UPC | 07498391570 |
Panduit - NKFP92ERLLSM003 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
