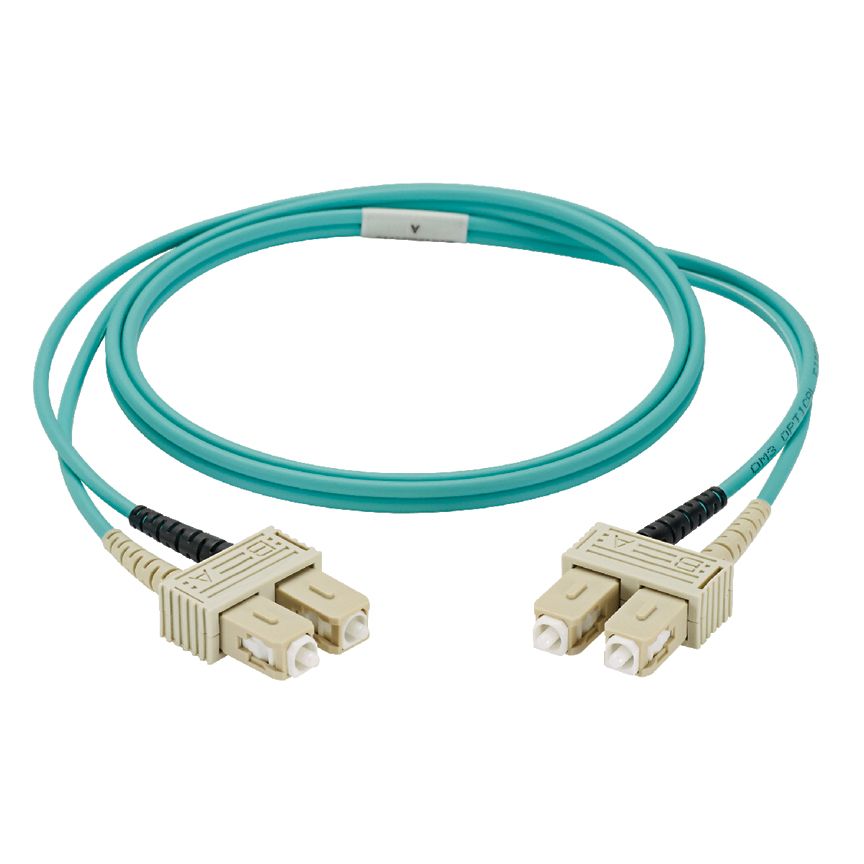

Panduit NKFPX23RSSSM003 | Fiber Optic Patch Cord
Description
Description
NetKey 2-fiber OM3 SC duplex to SC duplex patch cord, riser (OFNR) rated with 3.0mm jacket.
NetKey fiber optic patch cords include duplex LC, SC and ST connectors on both ends and pigtails include simplex LC, SC and ST on one end and open (un-terminated) on the other end. Patch cords and pigtails meet requirements of TIA/EIA-568-C.3-1. The fiber connectors are FOCIS compliant or compatible and meet the requirements of TIA/EIA-455-21A. Quality control reference label provides lifetime traceability of test data.
Panduit NetKey Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Riser, 2 Fibers, 9.84 ft Length, SC to SC Connector, 50 um Core Dimension, 125 um Clad Dimension, Aqua
Panduit - NKFPX23RSSSM003 - Features
- Marker cards printed in a variety of legends allows "kitting" for project builds
- Plastic liner provides easy removal of markers while protecting unused markers
- Conformable material with repositionable adhesive allows label to be removed and reused or used in temporary applications
- Provides durability
- High temperature resistance and dimensional stability for rough or textured surfaces
- Resists oil and abrasion
Specifications
Specifications
Panduit - NKFPX23RSSSM003 - Specifications
| Connector Type | Sc - Sc |
|---|---|
| Fiber Type | Om3 |
| Length | 3 M | 9.84 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 9.84 |
| Overall Length (m) | 3 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.118 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | NetKey |
| Part Features | Riser rated patch cords support installations that require this flame rating in specific environments |
| UPC | 07498392599 |
Panduit - NKFPX23RSSSM003 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
