Panduit NKFPX2ERLLSM002 | Fiber Optic Patch Cord
Regular price
$31.34
Unit price
Brand: Panduit
|
SKU:
668455
Regular price
$31.34
Unit price
Description
Description

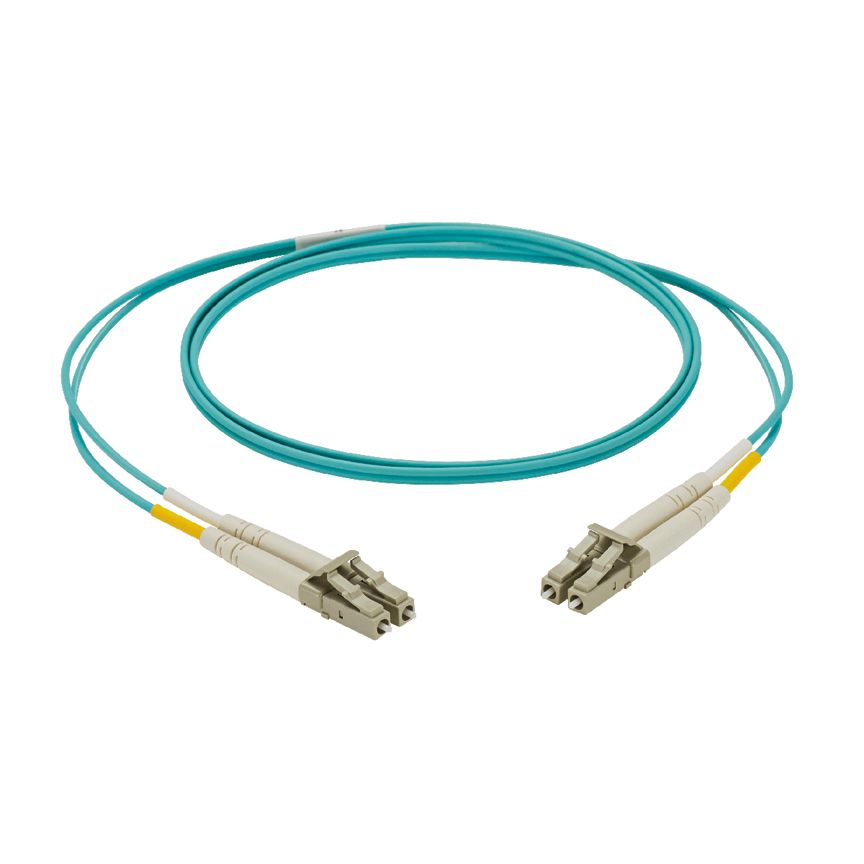

Panduit NKFPX2ERLLSM002 | Fiber Optic Patch Cord
The NetKey 2 Fiber Patch Cord is an OM3 patch cord with LC Duplex connectors. It is Riser (OFNR) rated, with a 1.6mm jacket, and is 2 meters in length.
The NetKey 2 Fiber Patch Cord is an OM3 patch cord with LC Duplex connectors. It is Riser (OFNR) rated, with a 1.6mm jacket, and is 2 meters in length.
Panduit - NKFPX2ERLLSM002 - Features
- Without pulling eye
- Applications: Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution a nd equipment distribution areas
Specifications
Specifications
Panduit - NKFPX2ERLLSM002 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 2 M | 6.56 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Technical Information | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 6.56 |
| Overall Length (m) | 2 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Environment | Indoor |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Boot Color | Aqua |
| Sub Brand | NetKey |
| UPC | 07498391406 |
