Panduit NKFPX2ERLSSM010 | Fiber Optic Patch Cord
Description
Description

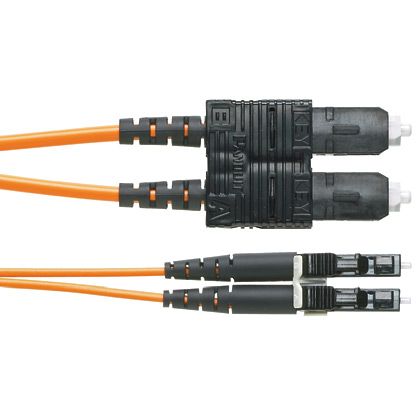

NetKey 2-fiber OM3 LC to SC patch cord riser (OFNR) rated with 1.6mm jacketed cable, 10m.
NetKey fiber optic patch cords include duplex LC, SC and ST connectors on both ends and pigtails include simplex LC, SC and ST on one end and open (un-terminated) on the other end. Patch cords and pigtails meet requirements of TIA/EIA-568-C.3-1. The fiber connectors are FOCIS compliant or compatible and meet the requirements of TIA/EIA-455-21A. Quality control reference label provides lifetime traceability of test data.
Panduit NetKey Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Riser, 2 Fibers, 10 m Length, LC to SC Connector, 50 um Core, 125 um Clad, Aqua Jacket, -10 to 60 deg C
Panduit - NKFPX2ERLSSM010 - Features
- Snap quickly into Opticom fiber adapter patch panels and enclosures assures flexibility and ease of network deployment and moves, adds, changes
- Mini-Com patch panels and Mini-Com and Opticom MPO fiber optic cassettes provides a complete system solution for connectivity, such as horizontal and vertical MPO adapters, LC, Keyed LC, SC, ST, FC, MT-RJ, E-2000 and Mini-Com fiber optic adapter modules, copper jack Mini-Com and audio/video Mini-Com
- LC and SC adapter housing colors follow TIA/EIA-568-C.3 suggested identification color scheme easy identification of fiber type via adapter colors, visually compatible with on site and connectivity that also follows the color identification scheme
- 100% performance tested assures that patch cords and pigtails are standard compliant
Specifications
Specifications
Panduit - NKFPX2ERLSSM010 - Specifications
| Connector Type | Lc - Sc |
|---|---|
| Fiber Type | Om3 |
| Length | 10 M | 32.81 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 32.8 |
| Overall Length (m) | 10 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | NetKey |
| Part Features | Riser rated patch cords support installations that require this flame rating in specific environments |
| UPC | 07498392275 |
Panduit - NKFPX2ERLSSM010 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
