Panduit NKFPZ22RLLSM008 | Fiber Optic Patch Cord | UPC - 61305625586
Description
Description
NetKey fiber optic patch cords include duplex LC, SC and ST connectors on both ends and pigtails include simplex LC, SC and ST on one end and open (un-terminated) on the other end. Patch cords and pigtails meet requirements of TIA/EIA-568-C.3-1. The fiber connectors are FOCIS compliant or compatible and meet the requirements of TIA/EIA-455-21A. Quality control reference label provides lifetime traceability of test data.

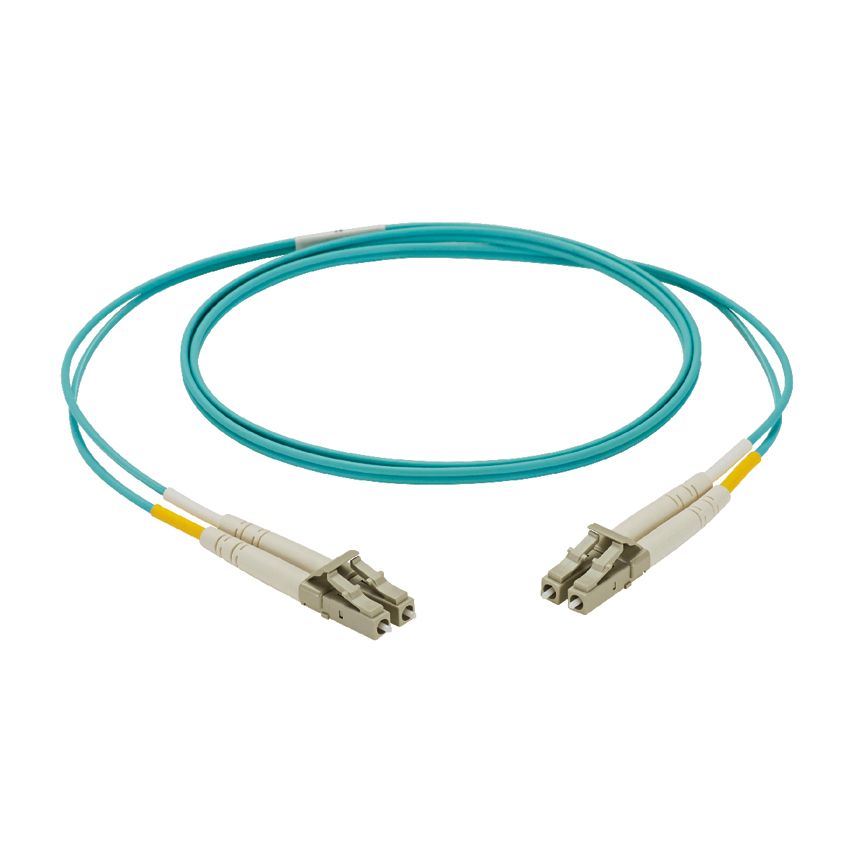

Panduit NetKey Fiber Optic Patch Cord, 2 Fibers, 118.11 ft Length, LC Duplex to LC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, OM4, Aqua
Features + Benefits
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
Panduit NKFPZ22RLLSM008 Key Specs
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 26.24 |
| Overall Length (m) | 8 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.078 |
| Outer Diameter (mm) | 2 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Complaint |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers and at the desk. Support network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution and equipment distribution areas |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | NetKey |
Panduit NKFPZ22RLLSM008 Data Sheets
| Data Sheets | NetKey Fiber Optic Patch Cords and Pigtails – OFNR and LSZH | Download and View |
| Line Cards | NetKey Cabling System | Download and View |
| Line Cards | NetKey Cabling System (Spanish): NKLC37--SA-UKE | Download and View |
| Line Cards | NetKey Cabling System (Middle East): NKLC35--SA-UKE | Download and View |
