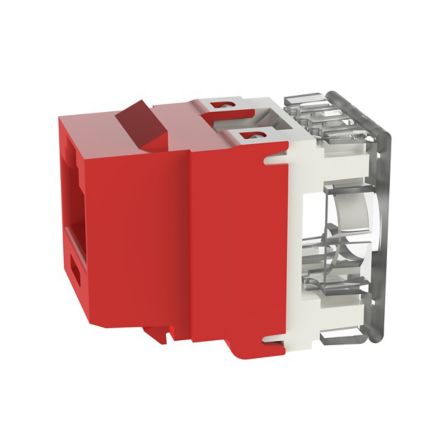

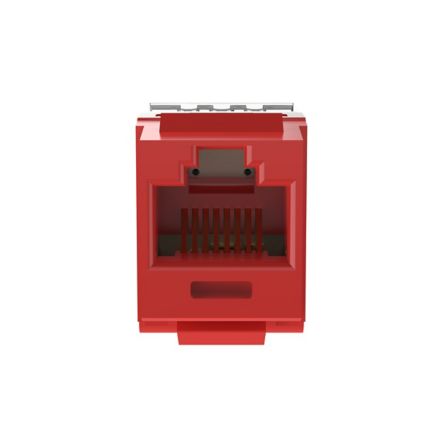

Panduit NKP5E88MRD | NK Category 5e Punchdown Jack Module, Red
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
447408
Regular price
$8.90
Unit price
Description
Description
Panduit NKP5E88MRD | NetKey Cat 5e Punchdown Jack, Red
The NetKey Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is red.
Panduit - NKP5E88MRD - Features
- Category 5e, 8-position, 8-wire, keystone punchdown jack module.
- Meet Category 5e performance requirements
- 8 position, 8 wire Keystone modules coded for T568A or T568B
- Punchdown style terminates 4-pair 24 and 22 AWG 100 Ohm solid unshielded twisted pair cable
- Maintains twists of UTP cable ensuring optimal channel and link performance
- Compatible with NetKey Keystone Faceplates, Surface Mount Boxes, Modular Patch Panels and Keystone Adapter Panel
Specifications
Specifications
Panduit - NKP5E88MRD - Product Categories
- Copper Systems
- Jack Modules
Panduit - NKP5E88MRD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NKP5E88MRD |
| Item Description | NetKey Cat 5e Punchdown Jack, Red |
| Note | Punchdown style termination |
| Product Type | Jack Module |
| Performance Level | Category 5e |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Red |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.16 |
| Overall Depth (mm) | 29.5 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Overall Length (In.) | 1.16 |
| Overall Length (mm) | 29.5 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
Panduit - NKP5E88MRD - Package Information
| UPC | 07498310691 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1605 |
