Panduit NKP5E88MWH-Q | Jack Module | UPC - 07498312515
Description
Description
Category 5e/Class D 8-position, industry standard keystone jack module terminates 4-pair, 22 to 26 AWG, 100 Ohm unshielded pair cable. Jack module uses a punchdown tool to properly and securely terminate each conductor for optimum performance. The jack module contains a color coded label for T568A and T568B wiring schemes. A retention cap provides additional strain relief.
Panduit NetKey Keystone Jack Module, 8-Position 8-Wire Cat 5e Punchdown Unshielded, Surface Mount, 1-Port, For Use With: Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Voice Over Internet Protocol (VoIP), Token Ring 4/16, ABS/Polycarbonate, White, 0.65 in L x 1.16 in W x 0.9 in H
Features + Benefits
- Confidence that each jack module delivers specified performance
- Utilizes industry standard termination style and includes wire retention cap
- Universal keystone jack modules snap in and out of all NetKey faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
- Marked with quality control number for future traceability

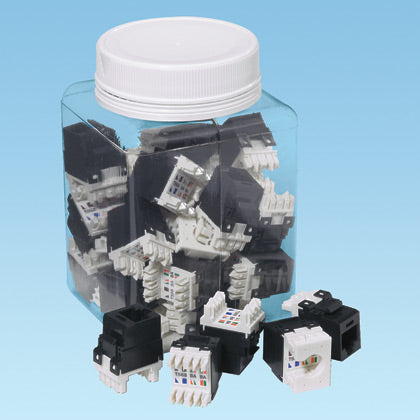

- Eliminating the time to open each individual package and reducing on site waste, ideal for high volume installations
- Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability
Panduit NKP5E88MWH-Q Key Specs
| Product Type | Jack Module |
| Performance Level | Category 5e |
| Connector Type | Jack Module |
| Termination Style | Punchdown |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | NetKey |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Color | White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| RoHS Compliant | Yes |
Panduit NKP5E88MWH-Q Data Sheets
| Compliances | Military Cross Reference Cable Ties | Download and View |
| Part Drawings | PAN-TY Locking Cable Tie: SS-5540 Sheet 3 | Download and View |
