Panduit NKPP24FMY NK Modular Patch Panel, Flat, Flush Mount, 24 Por...
Regular price
$50.91
Unit price
Brand: Panduit
|
SKU:
282015
Regular price
$50.91
Unit price
Description
Description

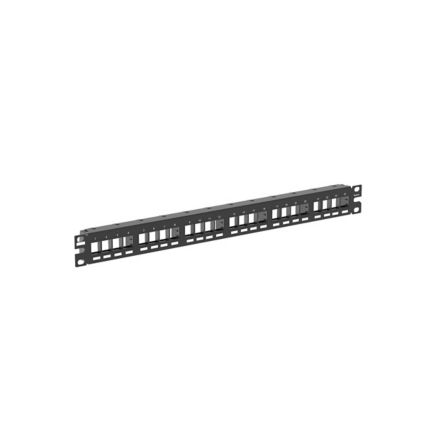

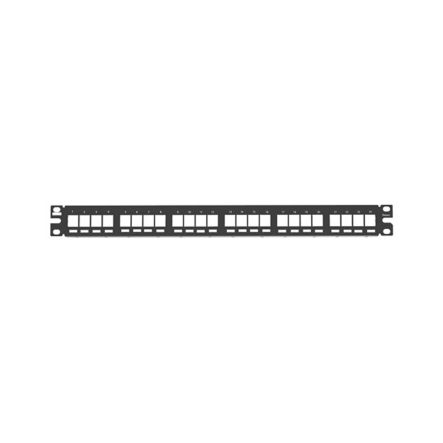

Panduit NKPP24FMY | NetKey Flush Patch Panel, 24 Port, 1 RU, BL
The NetKey Flush Mount Modular Patch Panel accepts up to 24 keystone modules for unshielded applications in 1 RU and mounts to 19 inch and 23 inch racks and cabinets. The panel mounts flush with the rack, can be identified with adhesive labels, and is black.
Panduit - NKPP24FMY - Features
- Accept all NetKey(TM) Modules
- Pre-printed numbers above each port for easy identification
- White write-on areas for port and panel identification
- Mount to standard TIA/EIA 19"; rack or 23"; racks with optional extender bracket
- Angled patch panels eliminate the need for horizontal cable managers
Specifications
Specifications
Panduit - NKPP24FMY - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - NKPP24FMY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NKPP24FMY |
| Item Description | NetKey Flush Patch Panel, 24 Port, 1 RU, BL |
| Product Type | Flush Mounted |
| Patch Panel Style | Flat |
| Material | CRS |
| Shield Type | Unshielded |
| Number of Ports | 24 |
| Module Type | Keystone |
| Number of Rack Units | 1 |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 1.04 |
| Overall Depth (mm) | 26.41 |
| Sub Brand | NetKey |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.68 |
| Color | Black |
| Part Features | Optional molded design, angled versions available and include strain relief bars |
Panduit - NKPP24FMY - Package Information
| UPC | 07498305601 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1619 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 1.6189 |
