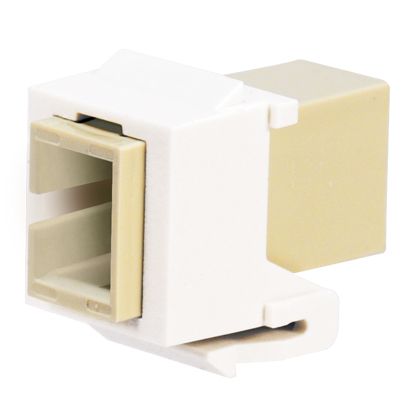

Panduit NKSCMZBL | NetKey Fiber Optic Adapter Module
Description
Description
Seamlessly integrate multimode or singlemode connections with our compact SC simplex Fiber adapter module. Reliable performance for efficient work areas and telecom rooms.
NK module supplied with one SC single-mode simplex adapter with zirconia ceramic split sleeve. Black.
LC, SC and ST fiber optic adapters have integrated panel retention clips and are TIA/EIA-604 compliant or compatible. Each simplex adapter will connect one connector pair in one Mini-Com space and each duplex adapter will connect two LC connector pairs in one Mini-Com space. LC fiber optic adapters and adapter Mini-Com include phosphor bronze split sleeves for OM1 or OM2 multi-mode applications or zirconia ceramic split sleeves for OM3 multi-mode or single mode applications.
Panduit NetKey Fiber Optic Adapter Module, SC Simplex Connector, Single-Mode Fiber, For Use With: Keystone Telecommunication Room Product and Work Area Outlets, Zirconia Ceramic, Black/Blue
Panduit - NKSCMZBL - Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
- Short flange design for improved modularity and higher density usage
- QC number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
Specifications
Specifications
Panduit - NKSCMZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NKSCMZBL |
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | NetKey |
| Split Sleeve Material | Zirconia Ceramic |
| Resistance Properties | Flame-Resistant |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | Fiber Optic Adapter Module |
| Module Color | Black |
| Part Features | Provides an adapter split sleeve material option to fit specific network requirement |
| UPC | 07498365727 |
Panduit - NKSCMZBL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
