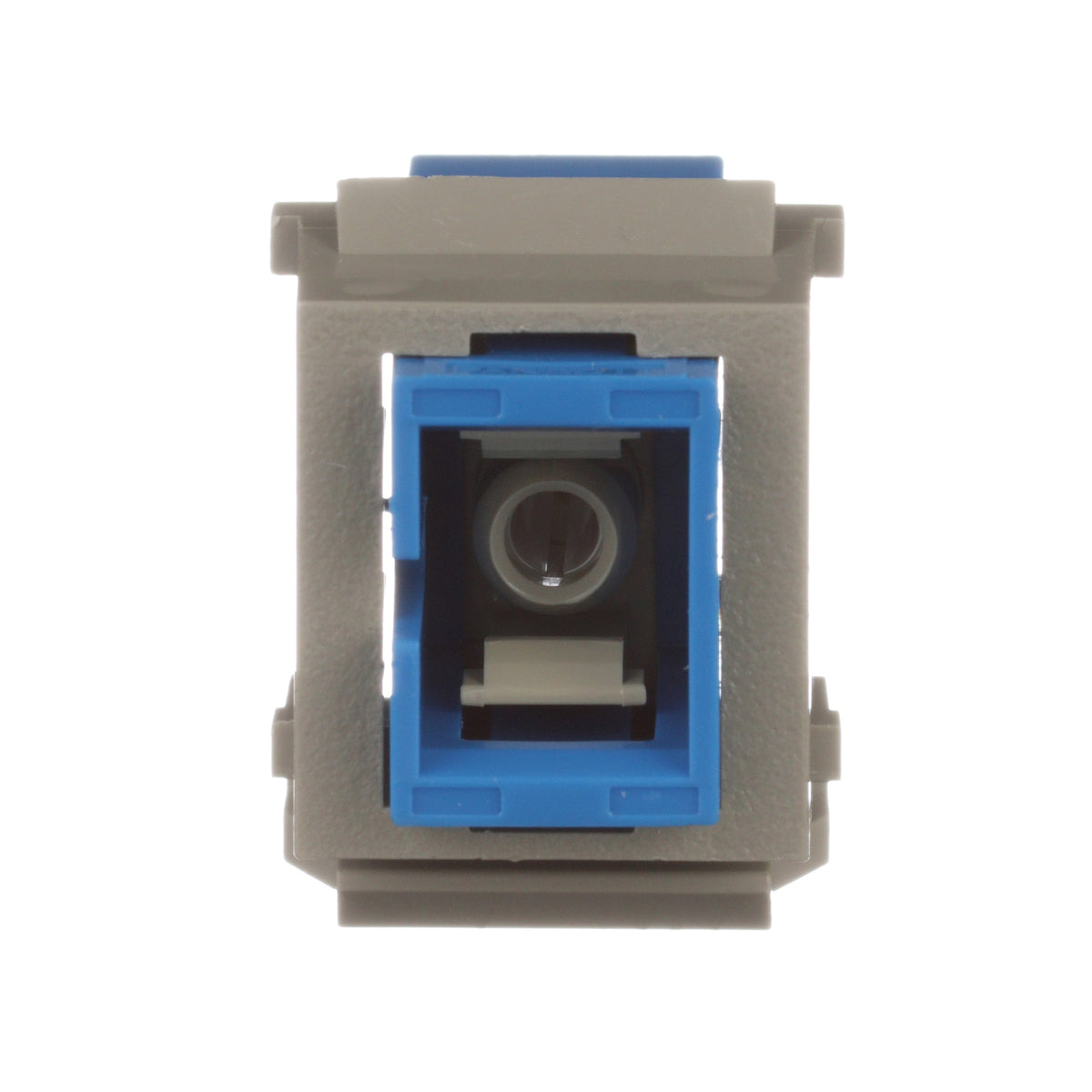

Panduit NKSCMZIG | NetKey Network Component
Description
Description
NK module supplied with one SC single-mode simplex adapter with zirconia ceramic split sleeve. Intl Gray.
LC, SC and ST fiber optic adapters have integrated panel retention clips and are TIA/EIA-604 compliant or compatible. Each simplex adapter will connect one connector pair in one Mini-Com space and each duplex adapter will connect two LC connector pairs in one Mini-Com space. LC fiber optic adapters and adapter Mini-Com include phosphor bronze split sleeves for OM1 or OM2 multi-mode applications or zirconia ceramic split sleeves for OM3 multi-mode or single mode applications.
Panduit NetKey Fiber Optic Adapter Module, SC Simplex Connector, Single-Mode Fiber, For Use With: Keystone Telecommunication Room Product and Work Area Outlets, Zirconia Ceramic, Blue/International Gray
Panduit - NKSCMZIG - Features
- Cable ties speed up installation with a unique self-locking head design that locks into any part of the tie
- Polyester coating provides additional edge protection and prevents corrosion between dissimilar metals
- The 316 stainless steel is wrapped in UV-resistant, halogen free, low smoke polyester to promote worker safety and reliability in corrosive, high vibration, temperature extreme environments
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
- Short flange design for improved modularity and higher density usage
- QC number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
Specifications
Specifications
Panduit - NKSCMZIG - Specifications
| Type | Coupler / Adapter |
|---|---|
| UNSPSC Code | 26121600 |
| Sub Brand | NetKey |
| Body Style | Simplex |
| Fiber Type | OM1, OM2, OM3, OM4, OS2 |
| Material | Zirconia Ceramic |
| Overall Length (In.) | 1.92 |
| Overall Length (mm) | 48.8 |
| Standards Met | Meet or exceed TIA/EIA-455-21 and TIA/EIA-568-C.3. TIA/EIA-604 FOCIS-3 compliant. RoHS compliant |
| Product Type | NetKey Network Component |
| Application | Can be used with keystone telecommunications room products and work area outlets |
| Color | Blue |
| Module Color | International Gray |
| Connection Type | SC-Simplex |
| Part Features | Provides an adapter split sleeve material option to fit specific network requirement |
| UPC | 07498365726 |
Panduit - NKSCMZIG - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
