Panduit NM1 | NetManager HC Horizontal Dual-Sided Manager, 1RU, Black
Regular price
$139.86
Unit price
Brand: Panduit
|
SKU:
351953
Regular price
$139.86
Unit price
Description
Description

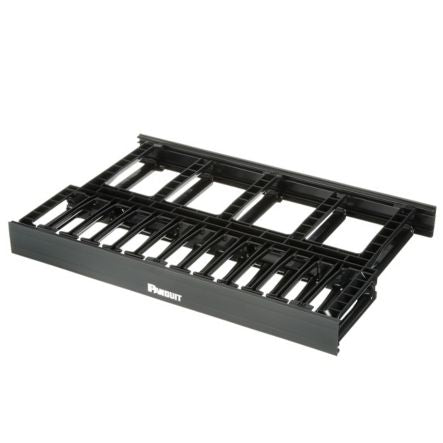

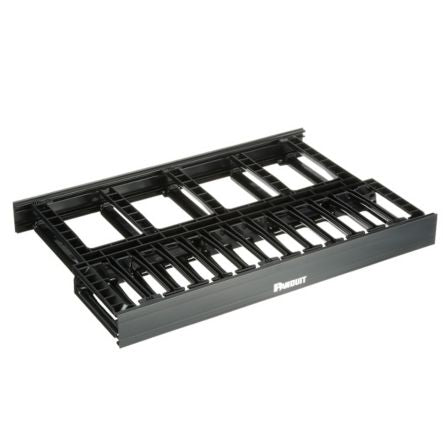

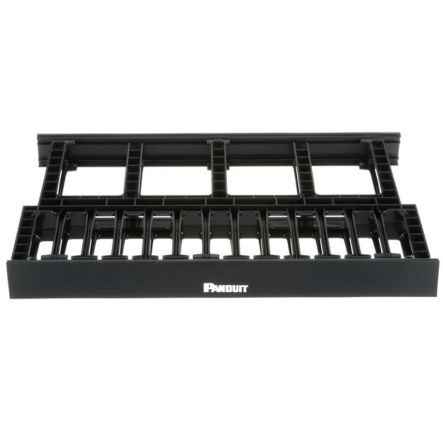

Panduit NM1 | NetManager HC Horizontal Dual-Sided Manager, 1RU, Black
The NetManager High Capacity Horizontal Cable Manager cost-effectively organizes and protects copper and fiber network cabling in any standard EIA 19 inch (483mm) rack or cabinet. Large front finger openings easily accommodate Cat 6 and 6A cables, reducing installation time and maintenance costs. The dual-sided manager is 1 RU and has hinged front and rear covers. The manager is black.
Panduit - NM1 - Features
- 1.7";H x 19.0";W x 13.1";D (44mm x 482mm x 332mm).
- Innovative inset fingers slope inward toward back of managers offering unobstructed access to network cabling for easier moves, adds and changes
- Large front finger openings easily accommodate Category 6 and 10 GbE cables, speeding installation and reducing maintenance costs
- Rear cable management finger spacing utilizes open D-rings for greater accessibility
- Can be used to create large capacity horizontal pathways for routing cable
- Patented front and rear dual hinged cover allows cable access without removing cover
- Curved surfaces maintain cable bend radius
- Pass-through holes allow for front to rear cabling
- Built in cable retainers hold cable in place for easy moves, adds and changes
- Covers, #12-24 and M6 mounting screws included
- Design fits flush to the front of the NetRunner high capacity WMPVHCF45E and WMPVHC45E vertical managers
Specifications
Specifications
Panduit - NM1 - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Horizontal Cable Managers
Panduit - NM1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NM1 |
| Item Description | NetManager HC Horizontal Dual-Sided Manager, 1RU, Black |
| Product Type | Dual Sided Manager |
| Body Material | ABS |
| Orientation | Horizontal |
| Cover Material | PVC |
| Finger Material | ABS |
| Sub Brand | NetManager High Capacity |
| Overall Height (In.) | 1.7 |
| Overall Height (mm) | 44 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 483 |
| Overall Depth (In.) | 13.1 |
| Overall Depth (mm) | 332 |
| Number of Rack Units | 1 |
| Environment | Indoor |
| Color | Black |
| Standards Met | RoHS Compliant |
| Includes | Manager, covers, hardware kit |
Panduit - NM1 - Package Information
| UPC | 07498300938 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3973 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - NM1 - Videos
| Video 1 | Click to View |
|---|
