Panduit NNC25X50LG2 | Base and Cover | UPC - 07498398530
Description
Description

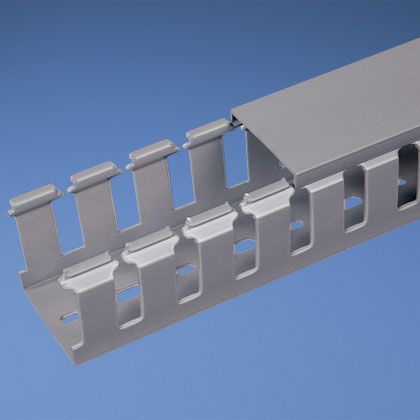

Panduct Type NNC wiring duct is made from halogen-free material that will not emit corrosive or harmful toxic gases when burned and withstands higher continuous use temperatures than PVC. NNC wiring duct is used to route, protect and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern.
Panduit Panduct Slotted Wall Wiring Duct, Type NNC Halogen-Free, 0.97 in W, 1.88 in D, 6.6 ft Length, Wide Slotted Slot, 0.39 in Slot, DIN Rail/Hole Mount, PPO, Light Gray
Features + Benefits
- Metric halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower score lines allows easy finger and sidewall section removals
- Provided with DIN 43 659 mounting holes
- Metric sizing and finger progression
- Duct and cover packaged together in two meter lengths
- High continuous use temperature
- The base sidewall is even with cover for superior aesthetics and greater wiring capacity when compared to non-flush cover wiring duct
- Base and finger score lines
Panduit NNC25X50LG2 Key Specs
| Application | NNC Wiring Duct is Used to Route, Protect, and Manage Wires near Sensitive Electronic Equipment and in Environments where Heat Resistance or Public Safety is a Concern |
| Product Type | Base and Cover |
| Color | Light Gray |
| Cover Part Number | NC25WH2 (included) |
| Flammability Rating | UL94 V-0 |
| Includes | Base and Cover |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Halogen-Free PPO |
| Mount Method | DIN Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Wide Slot Wiring |
| Wiring Duct Type | NNC |
| Overall Height (In.) | 1.88 |
| Overall Height (mm) | 47.8 |
| Overall Length (ft.) | 6.6 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 0.99 |
| Overall Width (mm) | 25.1 |
| Slot Width (In.) | 0.39 |
| Slot Width (mm) | 9.9 |
| Sub Brand | Panduct |
| Part Features | Metric Halogen-Free Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. The halogen-free material is environmentally safe and will not release corrosive or toxic gases. Base and Cover Packaged together. |
Panduit NNC25X50LG2 Data Sheets
| Part Drawings | Slotted Wall Halogen-Free Duct | Download and View |
| Product Bulletins | Type NNC -- Halogen-Free Metric Wiring Duct - WDCB27--WW-ENG | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - NNC25X25LG2 Product Page | Download and View |
