Brand: Panduit
|
SKU:
NR2WH-L
Panduit NR2WH-L Accessory, Snap Rivet, 2"; x 2"; (50mm x 50mm) Fiber-Duct, White
Regular price
$37.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit NR2WH-L Accessory, Snap Rivet, 2"; x 2"; (50mm x ...
Regular price
$37.86
Unit price
Description
Description

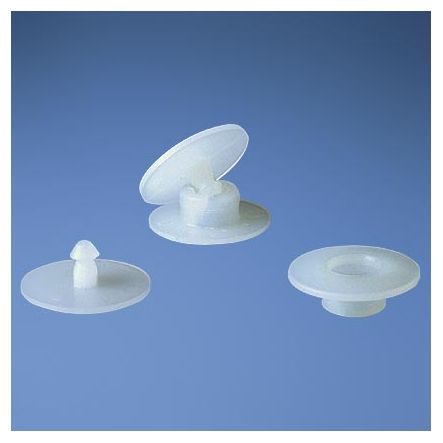

Panduit NR2WH-L | FIBER-DUCT SNAP RIVET KIT
Snap rivet fastens channel and fittings together for added strength and rigidity. Snap rivet mounts flush to surfaces, White.
Specifications
Specifications
Panduit - NR2WH-L - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - NR2WH-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | NR2WH-L |
| Item Description | FIBER-DUCT SNAP RIVET KIT |
| Application | (1) The Fiber-Duct 2X2 and 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. (2) it is Suited for Data Center Applications. |
| Product Type | Snap Rivet Kit |
| Sub Brand | Fiber-Duct |
| Color | White |
| For Use With | Channel and Fittings |
| Includes | (1) Snap Rivet Kit |
| Material | Nylon |
| Number of Pieces | 1 |
| Overall Height (In.) | 0.63 |
| Overall Height (mm) | 15.9 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 15.9 |
| Standards Met | UL Listed To 2024 Optical Fiber Cable Routing Assemblies, UL Recognized (File No. E147128) Slotted Wall, CSA Certified (File No. 016446 0 000) Slotted Wall, LP-CSISPEC-FD-1 |
| System Dimensions | 2x2 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.32 |
| Compatible Threaded Rod Size (mm) | 8.1 |
| Series Type | 2 x 2 and 4 x 4 Fiber-Duct Accessories |
Panduit - NR2WH-L - Package Information
| UPC | 07498371254 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0245 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.2446 |
