Brand: Panduit | SKU: CMZ-00424NK-C6CD-06

Panduit NUL6C04BU-FE | Netkey Cat 6 Cable LSZH Blue 4 Pair UTP 24 AWG 305m Pay-Out Box Cross Divider

$1.45

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

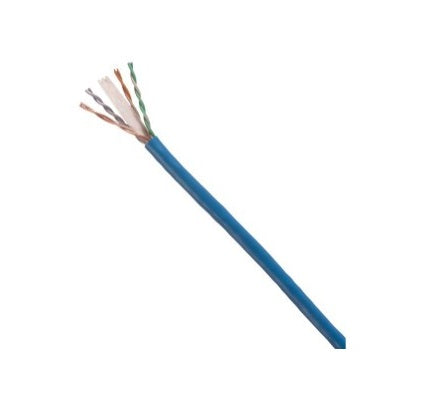

Panduit NUL6C04BU-FE | Netkey Cat 6 Cable LSZH Blue 4 Pair UTP 24 AWG 305m Pay-Out Box Cross Divider

Category 6 U/UTP copper cable meets ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel standards. The conductors are 24 AWG copper insulated with HDPE polymer. The copper conductors are twisted in pairs, separated by a cross divider, and all four pairs are covered by a LSFRZH jacket.

Specifications

Panduit - NUL6C04BU-FE - Specifications

Environment	Indoor
Performance Level	Category 6
Cable Construction	U/UTP
Flammability Rating	LSZH-1
Overall Length (ft.)	1000
Resistance Properties	Flame-Retardant
Jacket Material	LSZH Material
Color	Blue
Nominal Cable Outside Diameter (mm)	5.6
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-20
Minimum Operating Temperature (°F)	-4
Maximum Installation Temperature (°C)	50
Conductor Type	Solid
Minimum Installation Temperature (°F)	32
Maximum Installation Tension (N)	110
Bend Radius (mm)	22
Number of Pairs	4
Conductor Material	Copper

Documents and Downloads

Panduit NUL6C04BU-FE Data Sheet
