Brand: Panduit
|
SKU:
261337
Panduit OCFC10WH-X | Surface Raceway, LDPH10 Power Rated Outside Corner, White
Regular price
$40.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit OCFC10WH-X | Surface Raceway, LDPH10 Power Rated Outside Co...
Regular price
$40.87
Unit price
Description
Description

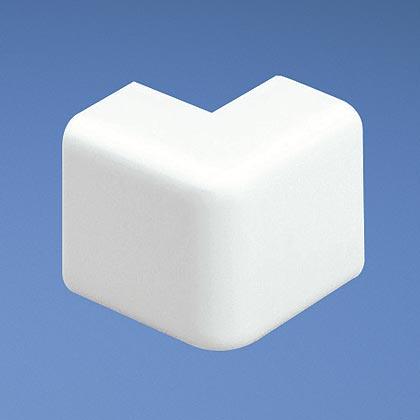

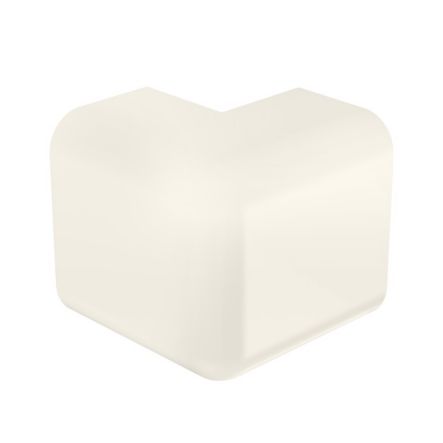

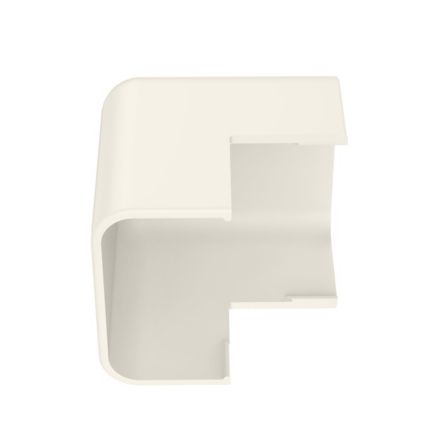

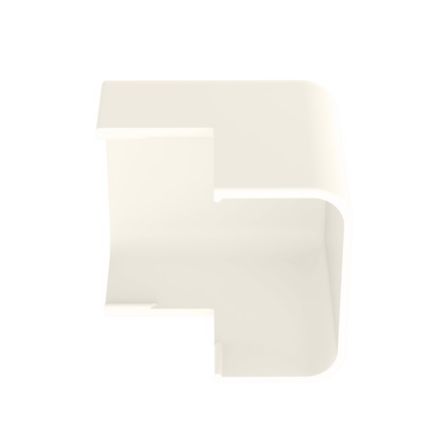

Panduit OCFC10WH-X | Surface Raceway, LDPH10 Power Rated Outside Corner, White
Transform your space with our outside power rated corner fitting. Ensure seamless cable management around corners.
Outside corner fitting for use with LDPH10 raceway only. White.
Panduit Pan-Way Outside Corner Fitting, Bend Radius Control Power Rated, Snap-On Mount, For Use With: Pan-Way LDPH10 Series Raceway, PVC, White, 1.75 in L x 1.62 in W
Panduit - OCFC10WH-X - Features
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance of high performance cabling systems
- one piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Adhesive backing full length adhesive strip allows easy tool-free installation and works well for temporary mounting
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
- Designed to provide solutions for routing of power or low voltage data and fiber optic cabling along perimeter walls
- Non-metallic construction
Specifications
Specifications
Panduit - OCFC10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | OCFC10WH-X |
| Color | Ivory |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Outside Corner |
| For Use With | LDPH10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Overall Height (In.) | 0.55 |
| Overall Height (mm) | 1.4 |
| Application | Pan-Way Lds Profile Raceway is a Single Channel Non-Hinged Raceway Which Provides Solutions for Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls. Lds Raceway is the Only Non-Metallic Raceway that is Bendable in Low Volt |
| Part Features | Tamper resistant design, Available 1 bend radius control fittings, Only non-metallic bendable raceway, Standard and power rated fittings, Non-metallic construction, Adhesive backing and Available in four |
| UPC | 07498360722 |
Panduit - OCFC10WH-X - Videos
| Panduit OCFC10WH-X Video 1 | Click to View |
|---|
