Brand: Panduit
|
SKU:
165432

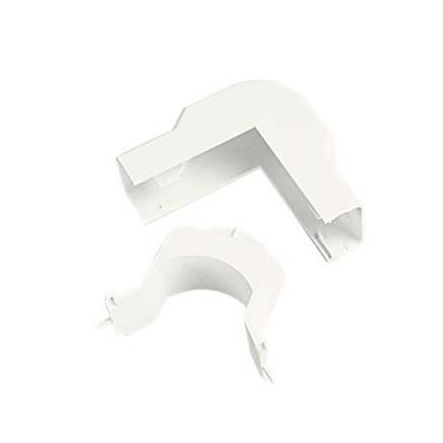

Panduit OCFX5WH-X LDS5, LDPH5 Bend Radius Outside Corner Fitting, White, Pack of 10
Regular price
$52.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit OCFX5WH-X LDS5, LDPH5 Bend Radius Outside Corner Fitting, W...
Regular price
$52.21
Unit price
Description
Description
Panduit OCFX5WH-X | Surface Raceway, LDPH10 Power Rated Outside Corner, White
The power rated outside corner fitting is rated for applications up to 600V. It is designed for use with the LDPH5 and is White.
One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - OCFX5WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - OCFX5WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | OCFX5WH-X |
| Item Description | Surface Raceway, LDPH10 Power Rated Outside Corner, White |
| Product Type | Bend Radius Control Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Outside Corner |
| For Use With | LDPH5, LDS5 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.64 |
| Overall Height (mm) | 16.3 |
| Overall Length (In.) | 2.86 |
| Overall Length (mm) | 72.6 |
| Overall Width (In.) | 2.86 |
| Overall Width (mm) | 72.6 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
Panduit - OCFX5WH-X - Package Information
| UPC | 07498355655 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.1755 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - OCFX5WH-X - Videos
| Video 1 | Click to View |
|---|
