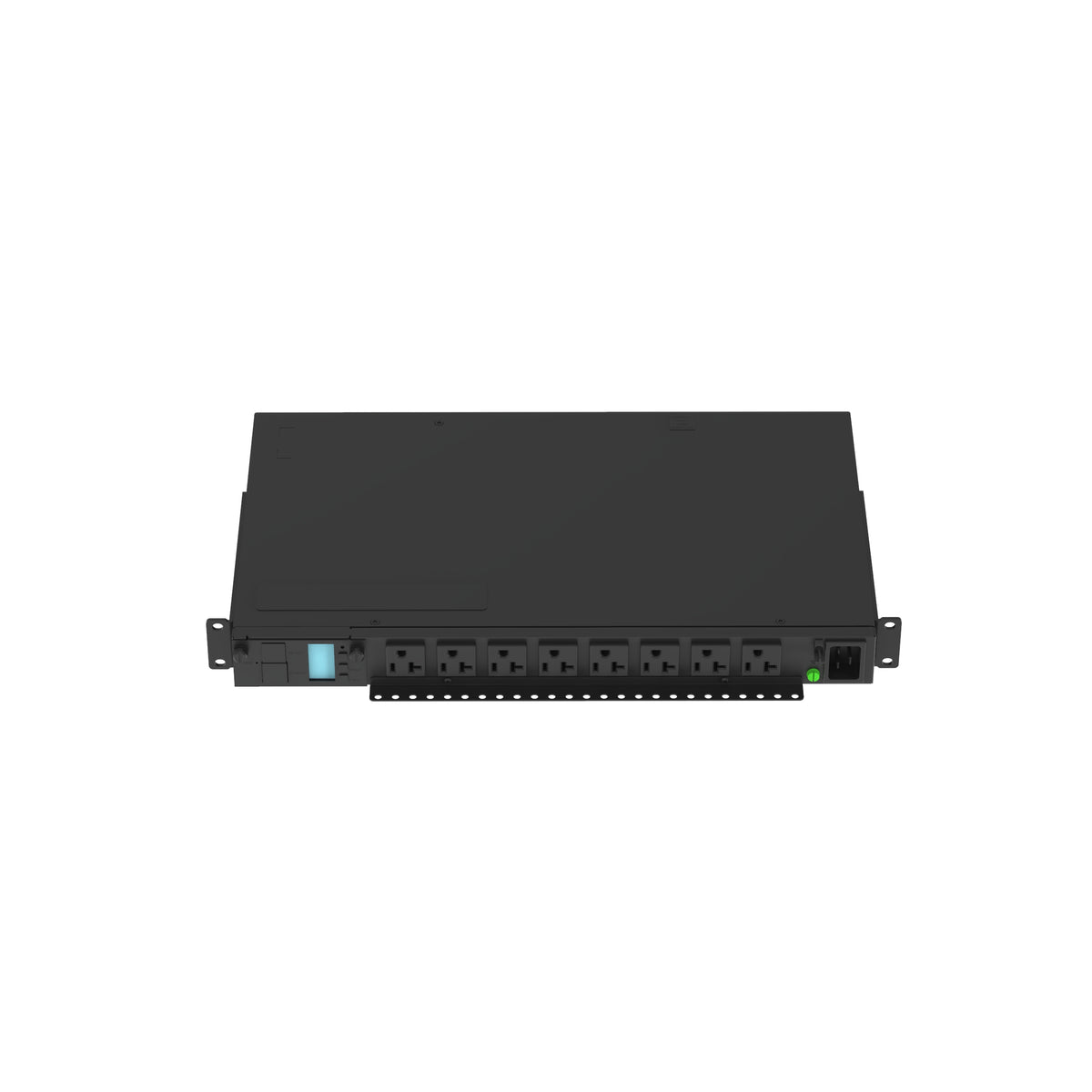

Panduit P08D09M | G5 Monitored Input PDU
Description
Description
The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.
Panduit SmartZone G5 Power Distribution Unit, 1-Phase, Series: MI Series, 120 VAC, 16 A, 8 Outlets, 10 ft Cord, 50/60 Hz, Surface/Horizontal, NEMA 5-15P Plug, NEMA 5-20R Receptacle, Black, 17.5 in W x 10.6 in D x 1.7 in H
Enhance data center efficiency with our G5 monitored input PDU. Benefit from real-time power monitoring, space-saving design, and rapid fault detection for improved system reliability.
The SmartZone G5 Monitored Input (MI Series) Rack PDU features (8) 5-20R outlets. It is a 15 amp single phase, 120 V PDU and comes with a NEMA 5-15P plug. It measures 1.713 inches L x 17.461 inches W x 10.6 inches D (43.2mm x 444.5mm x 270.0mm). The PD U is black.
Panduit - P08D09M - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- High reliability and scalability in a cost effective design
- Replace the controller and display module without having to power down the rack
- Specifically designed for Landlord/Tenant (Co-Lo's) allowing for remote access of real-time, vital statistics and operating information on two separate, secure networks
- Not only physical but hardened digital security, layers within the firmware LDAP, SNMP v3, TLS, encrypted security, allows for Panduit PDUs to pass standard certified security scans
- Digital sensors not only allow for multiple sensors on the same bus, but also identify themselves to the controller to simplify setup and commissioning
- The intelligent PDUs feature an enhanced designed web interface which detects the type of device that you are on and automatically adjusts the screen for an optimal experience
- Meets demands of densely packed IT equipment in rack or cabinet space
- Optimal form factor enables efficient rack space utilization
- Easily identify phase to outlet banks to aid in fault isolation or load balancing
- Meets NEC requirements and installation guidelines for IT equipment
- A full breadth offering to seamlessly interoperate with existing building power wiring schemes
- Rack PDUs that have the ability for aggregate power monitoring to quickly identify potential power issues and reclaim available or under utilized power capacity
Specifications
Specifications
Panduit - P08D09M - Specifications
| Number Of Outlets | Other |
|---|---|
| UNSPSC Code | 39121017 |
| Technical Information | UL Listed |
| Note | NA Only |
| Includes | Mounting Hardware |
| Product Type | PDU |
| Mount Orientation | Horizontal |
| Sub Brand | G5 |
| Rack PDU Type | Monitored Input |
| Plug Type | NEMA 5-15P |
| Number of Circuit Breakers | 0 |
| Input Voltage (V) | 120 |
| Input Amperage (A) | 15 |
| Phase | Single-Phase |
| Frequency Compatibility (Hz) | 50/60 |
| Current Measurement Accuracy (%) | ±1% |
| Voltage Measurement Accuracy (%) | ±1% |
| Power Measurement Accuracy (%) | ±1% |
| Input Cord Length (ft.) | 10 |
| Input Cord Length (m) | 3 |
| Output Receptacles | (8)5-20R |
| Output Voltage (V) | 120 |
| Output Capacity (kW) | 1.4 |
| Front Panel Display | Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device |
| UPC | 61305631581 |
Panduit - P08D09M - Package Information
| UPC | 61305631581 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 1.6362 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
