Brand: Panduit
|
SKU:
970174

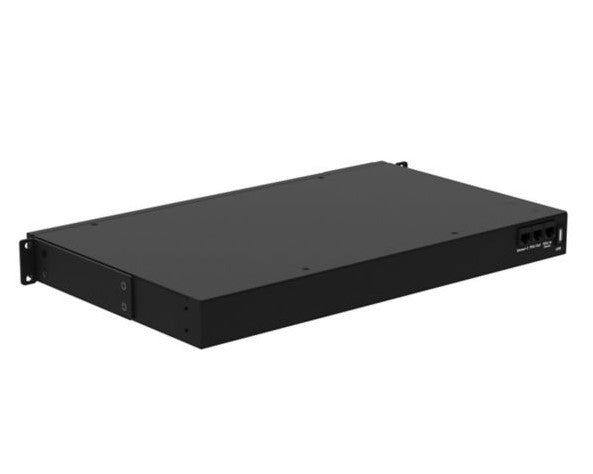

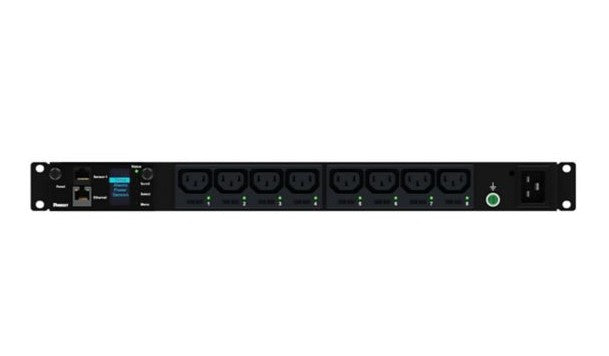

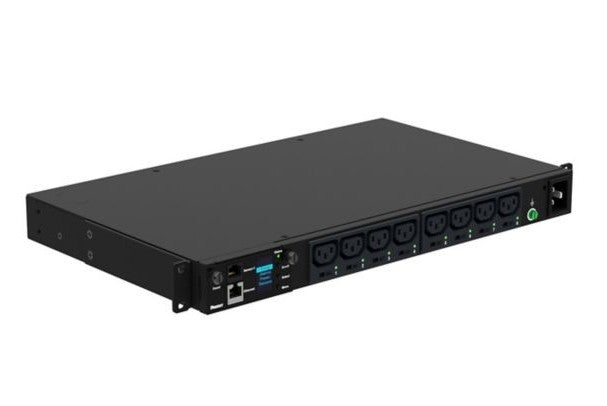

Panduit P08G10M | SmartZone G5 Monitored/Switched PDU, 16A 1-Phase 1U, 8×C13, 3m Cord, IEC 60309 Input
Regular price
$1,675.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P08G10M | SmartZone G5 Monitored/Switched PDU, 16A 1-Phase ...
Regular price
$1,675.55
Unit price
Description
Description
Panduit P08G10M | SmartZone G5 Monitored/Switched PDU, 16A 1-Phase 1U, 8×C13, 3m Cord, IEC 60309 Input
Enhance data center efficiency with our G5 Intelligent PDU offering. Benefit from real-time power monitoring, space-saving design, and rapid fault detection for improved system reliability.
Specifications
Specifications
Panduit - P08G10M - Specifications
| Note | CE Compliant Only |
|---|---|
| Includes | Mounting Hardware |
| Product Type | PDU |
| Mount Orientation | Horizontal |
| PDU Form Factor | 1U |
| Sub Brand | G5 |
| Rack PDU Type | Monitored & Switched per Outlet |
| Plug Type | IEC 60309 2P+E 6h 16A (IP44) |
| Number of Circuit Breakers | 0 |
| Input Voltage (V) | 230 |
| Input Amperage (A) | 16 |
| Phase | Single-Phase |
| Frequency Compatibility (Hz) | 50/60 |
| Current Measurement Accuracy (%) | ±1% |
| Voltage Measurement Accuracy (%) | ±1% |
| Power Measurement Accuracy (%) | ±1% |
| Input Cord Length (ft.) | 10 |
| Input Cord Length (m) | 3 |
| Output Receptacles | (8)C13 |
| Output Voltage (V) | 230 |
| Front Panel Display | Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device |
Panduit - P08G10M - Package Includes
| UPC | 61305631754 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 1.6362 |
