Brand: Panduit
|
SKU:
991463

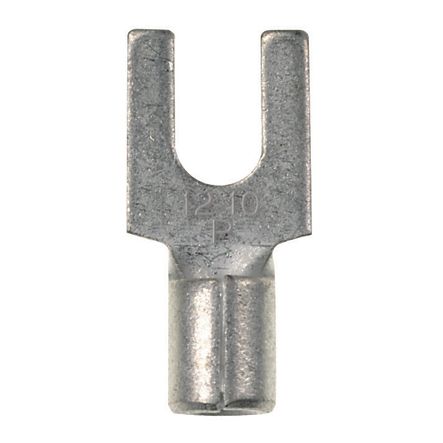

Panduit P10-10F-D | Loose Piece Forks | UPC - 07498380521
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P10-10F-D | Loose Piece Forks | UPC - 07498380521
Regular price
$1.46
Unit price
Description
Description

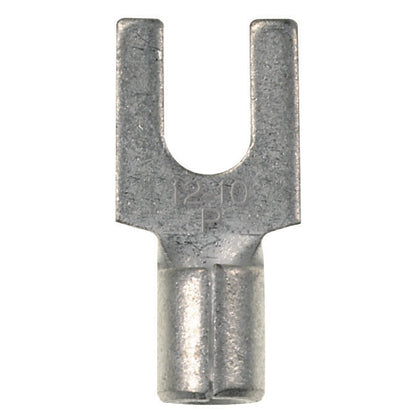

Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-F, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 0.78 in Length, Brazed Seam Barrel, 0.13 in ID x 0.22 in OD Barrel, Standard Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.23 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Flange design provides extra secure connection on a variety of applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
Panduit P10-10F-D | Loose Piece Forks | UPC - 07498380521 Key Specs
| Fork Type | Standard |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit P10-10F-D | Loose Piece Forks | UPC - 07498380521 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Fork, Non-Insulated, #12-10 | Download and View |
Panduit P10-10F-D | Loose Piece Forks | UPC - 07498380521 Environmental Information
| Panduit's RoHS Statement | Download and View |
