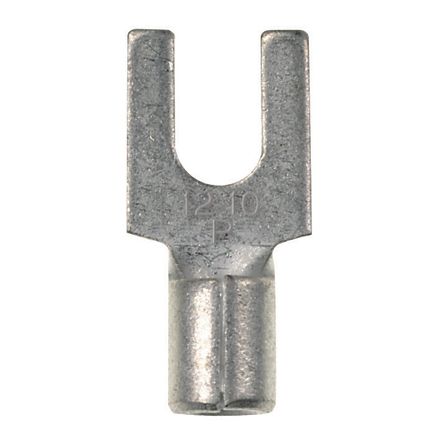

Panduit P10-10F-D | Pan-Term P10-10F-D Loose Piece Forks
Regular price
$274.64
Unit price
Brand: Panduit
|
SKU:
991463-ME
Regular price
$274.64
Unit price
Description
Description
Panduit P10-10F-D | Pan-Term P10-10F-D Loose Piece Forks
Fork Terminal, non-insulated, 12- 10 AWG, #10 stud size, bulk package.
Panduit P10-10F-D - TERMINAL - FORK TERMINAL, NON-INSULATED
Specifications
Specifications
Panduit - P10-10F-D - Product Categories
- Wire Termination
- Fork Terminals
Panduit - P10-10F-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-10F-D |
| Item Description | Pan-Term P10-10F-D Loose Piece Forks |
| Fork Type | Standard |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Standard |
| Barrel Length (In.) | 0.28 |
| Barrel Length (mm) | 7 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Seam Type | Brazed |
| Outer Diameter (In.) | 0.22 |
| Outer Diameter (mm) | 5.6 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Inside Diameter (In.) | 0.13 |
| Inside Diameter (mm) | 3.3 |
| Overall Length (In.) | 0.78 |
| Overall Length (mm) | 19.8 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Tongue Length (In.) | 0.51 |
| Tongue Length (mm) | 12.8 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.37 |
| Tongue Width (mm) | 9.4 |
| Packaging Type | Box |
| Product Type | Fork Terminal |
Panduit - P10-10F-D - Package Information
| UPC | 07498380521 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
