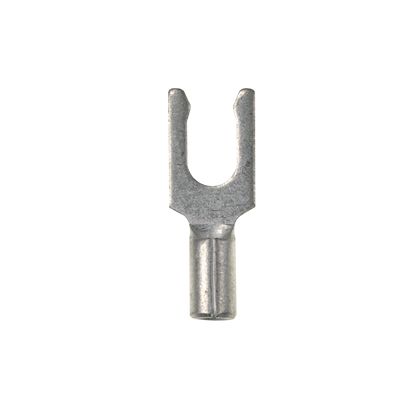

Panduit P10-10LF-D | Pan-Term Loose Piece Forks
Description
Description
Secure your electrical connections effortlessly with our non-insulated locking fork terminal, with a locking mechanism to ensure long-lasting performance.
Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-LF, Stranded Copper Conductor, 14 to 10 AWG Conductor, #10 Stud, 0.79 in Length, Brazed Seam Barrel, 0.13 in ID x 0.22 in OD Barrel, Locking Fork Tongue, 0.34 in W x 0.04 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.23 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Panduit - P10-10LF-D - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Locks in place for secure connection insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - P10-10LF-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-10LF-D |
| Fork Type | Locking Fork |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380917 |
Panduit - P10-10LF-D - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
