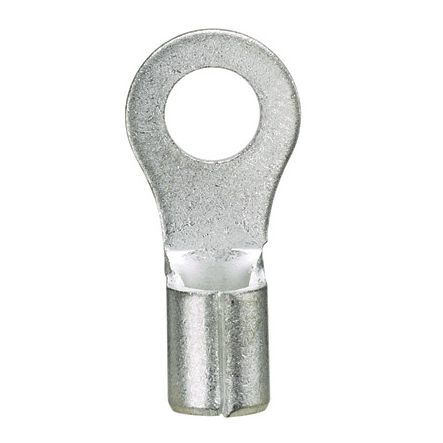

Panduit P10-12R-L | Pan-Term P10-12R-L Ring Terminal
Regular price
$61.36
Unit price
Brand: Panduit
|
SKU:
PAN-P10-12R-L
Regular price
$61.36
Unit price
Description
Description
Panduit P10-12R-L | Pan-Term P10-12R-L Ring Terminal
Panduit P10-12R-L Ring Terminal, Non-Insulated, 14 - 10 AWG, 1/2"; Stud Size, Pack of 50
Ring Terminal, 14 – 10 AWG, 1/2" stud size, non-insulated.
Specifications
Specifications
Panduit - P10-12R-L - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P10-12R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-12R-L |
| Item Description | Pan-Term P10-12R-L Ring Terminal |
| Stud Hole Size (In.) | 1/2" |
| Stud Hole Size (mm) | 12 |
| Stud Size | 1/2" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.72 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 5.6 |
| Inside Diameter (In.) | 0.13 |
| Inside Diameter (mm) | 3.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.2 |
| Overall Length (mm) | 30.5 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 18.3 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.72 |
| Tongue Width (mm) | 18.3 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P10-12R-L - Package Information
| UPC | 07498391287 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0063 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0626 |
