Brand: Panduit
|
SKU:
10044436

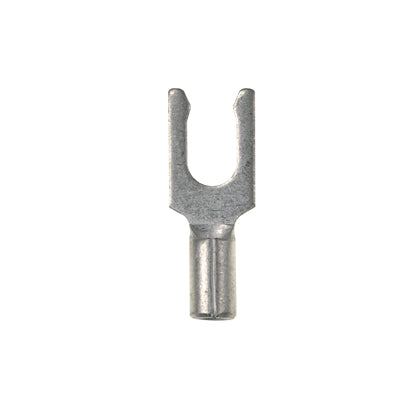

Panduit P10-14LF-L | Loose Piece Forks | UPC - 07498380918
Regular price
$43.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P10-14LF-L | Loose Piece Forks | UPC - 07498380918
Regular price
$43.65
Unit price
Description
Description
Locking Fork Terminal, non-insulated, 14- 10 AWG, 1/4 stud size, standard package.
Panduit Panduit P10-14LF-L | Loose Piece Forks | UPC - 07498380918 Key Specs
| Fork Type | Locking Fork |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | M6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P10-14LF-L | Loose Piece Forks | UPC - 07498380918 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - P18-8FF-C Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Locking Fork Terminals, Non- Insulated, #14-10 | Download and View |
Panduit Panduit P10-14LF-L | Loose Piece Forks | UPC - 07498380918 Environmental Information
| Panduit's RoHS Statement | Download and View |
