Panduit P10-14R-D | Loose Piece Ring Terminal | UPC - 07498380235
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

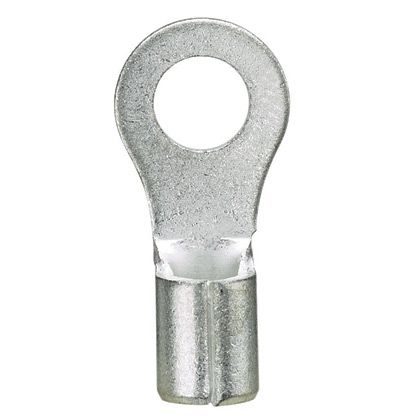

Panduit P10-14R-D | Loose Piece Ring Terminal | UPC - 07498380235
Regular price
$1.46
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 14 to 10 AWG Conductor, 1/4 in Stud, 0.96 in Length, Brazed Seam/Serrated/Standard Barrel, 0.13 in ID x 0.22 in OD Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.38 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit P10-14R-D Key Specs
| Stud Hole Size (In.) | 1/4 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.22 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 5.6 |
| Inside Diameter (In.) | 0.13 |
| Inside Diameter (mm) | 3.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| Overall Width (In.) | 0.52 |
| Overall Width (mm) | 13.2 |
| Tongue Thickness (In.) | 0.04 |
Panduit P10-14R-D Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ring Terminals, Non-Insulated, #12-10 | Download and View |
| Videos | BlackFin CT-2300 Video 16:9 BSN18-C | Download and View |
| Videos | Success Depends on the Crimp Training Video 16:9 BS10-D | Download and View |
