Brand: Panduit
|
SKU:
PAN-P10-14RD

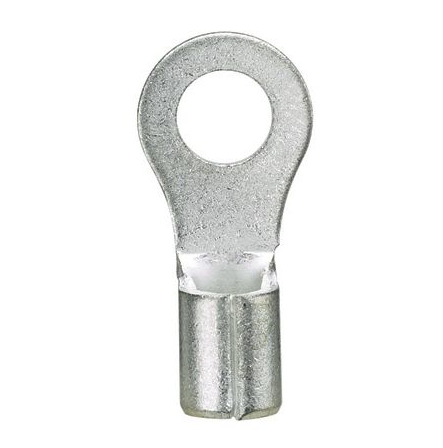

Panduit P10-14R-D | Pan-Term P10-14R-D Ring Terminal, Bare, 10-14 AWG, 1/4" Stud, PK500
Regular price
$129.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P10-14R-D | Pan-Term P10-14R-D Ring Terminal, Bare, 10-14 A...
Regular price
$129.56
Unit price
Brand: Panduit
|
SKU:
PAN-P10-14RD
Regular price
$129.56
Unit price
Shipping calculated at checkout.
Description
Description
Panduit P10-14R-D | Pan-Term P10-14R-D Ring Terminal, Bare, 10-14 AWG, 1/4" Stud, PK500
The P10-14R-D Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Specifications
Panduit - P10-14R-D - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P10-14R-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-14R-D |
| Item Description | Pan-Term P10-14R-D Ring Terminal, Bare, 10-14 AWG, 1/4" Stud, PK500 |
| Stud Hole Size (In.) | 1/4" |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.22 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 5.6 |
| Inside Diameter (In.) | 0.13 |
| Inside Diameter (mm) | 3.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| Overall Width (In.) | 0.52 |
| Overall Width (mm) | 13.2 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.52 |
| Tongue Width (mm) | 13.2 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P10-14R-D - Package Information
| UPC | 07498380235 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.4190 |
| Standard Ctn. Quantity | 0.0 |
| Standard Ctn. Volume (cf) | 0.0 |
