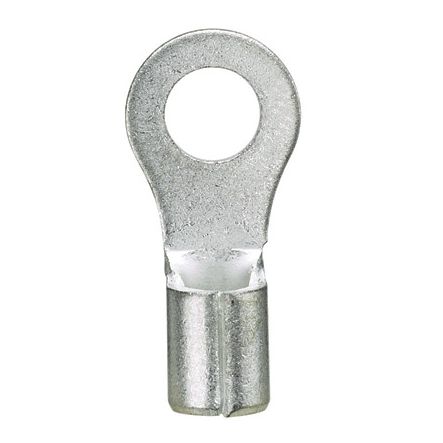

Panduit P10-56R-D | Pan-Term Ring Terminal
Description
Description
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.
Ring Terminal, 12 " 10 AWG, 5/16" stud size, non-insulated, bulk package.
Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 5/16 in Stud, 0.96 in Length, Brazed Seam/Serrated/Standard Barrel, 0.13 in ID x 0.22 in OD Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.38 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Panduit - P10-56R-D - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Specifications
Specifications
Panduit - P10-56R-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P10-56R-D |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-106) |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.22 |
| Outer Diameter (mm) | 5.6 |
| UPC | 07498380237 |
Panduit - P10-56R-D - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
