Brand: Panduit
|
SKU:
10044587
Panduit P10-6RHT6-D | Ring Terminal | UPC - 07498380551
Regular price
$211.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P10-6RHT6-D | Ring Terminal | UPC - 07498380551
Regular price
$211.86
Unit price
Description
Description

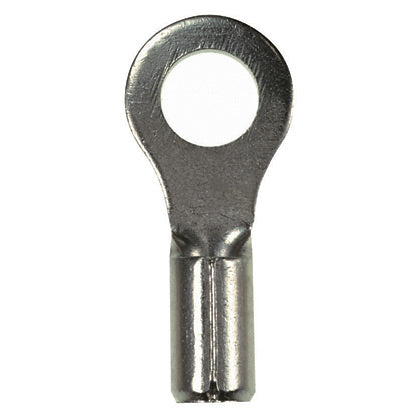

Panduit Pan-Term Terminal, Type P-RHT High Temperature, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #6 Stud, 0.78 in Length, Brazed Seam/Standard Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 2000 VAC, Ring Shape Enclosure, 650 deg F, Copper, Tin Plated, Silver, 0.31 in W
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Without insulation
Panduit Panduit P10-6RHT6-D | Ring Terminal | UPC - 07498380551 Key Specs
| Minimum Operating Temperature (°C) | 343 |
| Minimum Operating Temperature (°F) | 650 |
| Stud Hole Size (In.) | 13/100 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
Panduit Panduit P10-6RHT6-D | Ring Terminal | UPC - 07498380551 Environmental Information
| Panduit's RoHS Statement | Download and View |
