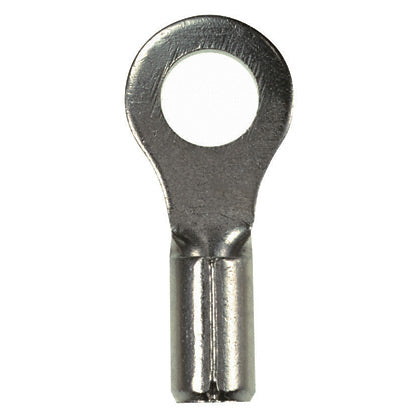

Panduit P10-8RHT6-L | Ring Terminal | UPC - 07498380542
Regular price
$48.31
Unit price
Brand: Panduit
|
SKU:
930752
Regular price
$48.31
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-RHT High Temperature, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 0.78 in Length, Beveled Edge/Brazed Seam/Serrated/Standard Barrel, 0.13 in ID x 0.22 in OD Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.35 in Clearance, 650 deg F, Copper, Tin Plated, Silver
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit P10-8RHT6-L Key Specs
| Minimum Operating Temperature (°C) | 343 |
| Minimum Operating Temperature (°F) | 650 |
| Stud Hole Size (In.) | 4/25 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
Panduit P10-8RHT6-L Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX1-14AF-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
