Brand: Panduit
|
SKU:
10044560

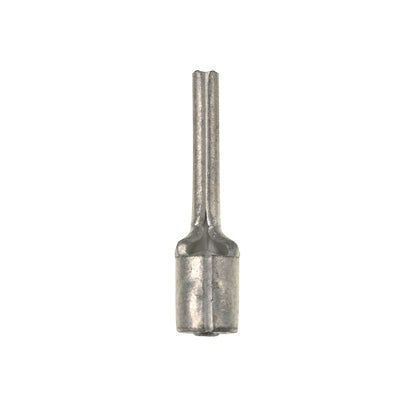

Panduit P10-P55-D | Loose Piece terminal | UPC - 07498381232
Regular price
$265.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P10-P55-D | Loose Piece terminal | UPC - 07498381232
Regular price
$265.74
Unit price
Description
Description
Panduit Pan-Term Pin Terminal, Metallic Loose Piece Non-Insulated Standard, Series: P Series, Solid/Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.11 in Pin Dia, 0.55 in Pin Length, 2000 VAC, 0.3 in L Wire Strip, 0.03 in Stock, Vinyl Insulation, Copper, 302 deg F, 0.79 in Overall Length
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
- Standard barrel configuration
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- CT-100A, CT-200, CT-260, CT-1570, CT-2500 recommended installation tools
- Crimp termination
- Standard barrel configuration, brazed seam barrel
- Pin shape enclosure
- Tin-plated finish
Panduit Panduit P10-P55-D | Loose Piece terminal | UPC - 07498381232 Key Specs
| Pin Length (In.) | 0.55 |
| Pin Length (mm) | 14 |
| Insulation Material | Vinyl |
| Maximum Wire Size (AWG) | 12 - 10 AWG |
| Wire Strip Length (In.) | 0.30 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Brazed |
| Barrel Length (In.) | 0.24 |
| Barrel Length (mm) | 6.1 |
| Overall Length (In.) | 0.79 |
| Overall Length (mm) | 20.1 |
| Sub Brand | Pan-Term |
| Packaging Type | Box |
Panduit Panduit P10-P55-D | Loose Piece terminal | UPC - 07498381232 Environmental Information
| Panduit's RoHS Statement | Download and View |
