Brand: Panduit
|
SKU:
186434

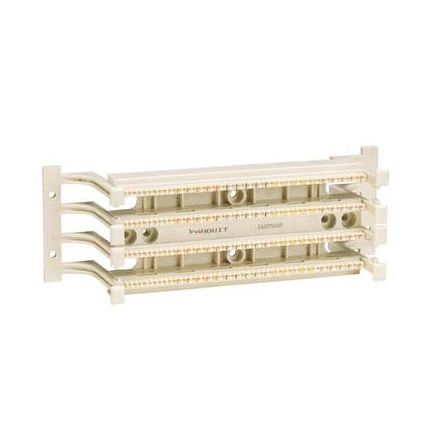

Panduit P110BW100-X Pan-Punch 100 Pair 110 Punchdown Base With Legs
Regular price
$40.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P110BW100-X Pan-Punch 100 Pair 110 Punchdown Base With Legs
Regular price
$40.47
Unit price
Description
Description
Panduit P110BW100-X | 100 Pair 110 Punchdown Base With Legs
The 100 Pair 110 Punchdown Base With Legs is for use with Pan-Punch 110-style Bases, Connectors and Systems.
Panduit - P110BW100-X - Features
- Exclusive deeper channel to facilitate TIA/EIA Category 5e cabling installations
- Ideal for use in cross-connects and consolidation point applications
- Available with or without legs for various mounting options
- Sturdy one-piece design
- Highly visible color-coded wiring strip
Specifications
Specifications
Panduit - P110BW100-X - Product Categories
- Copper Systems
- Cross Connect Bases
Panduit - P110BW100-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P110BW100-X |
| Item Description | 100 Pair 110 Punchdown Base With Legs |
| Product Type | Base with Legs |
| Sub Brand | Pan-Punch |
| Color | Beige |
| Number of Pairs | 100 |
| Number of Ports | 25 |
| Material | Polycarbonate |
| Overall Depth (In.) | 3.38 |
| Overall Depth (mm) | 85.9 |
| Overall Height (In.) | 3.45 |
| Overall Height (mm) | 87.5 |
| Overall Width (In.) | 10.71 |
| Overall Width (mm) | 272.1 |
| Standards Met | Exceeds ANSI/TIA-568.2-D, Meets IEC 60352-4 requirements and RoHS Compliant |
| Performance Level | Category 5e |
Panduit - P110BW100-X - Package Information
| UPC | 07498362061 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.8250 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
