Panduit P110PC2IG4Y | Pan-Punch Patch Cord Assembly
Regular price
$18.19
Unit price
Brand: Panduit
|
SKU:
10153312
Regular price
$18.19
Unit price
Description
Description

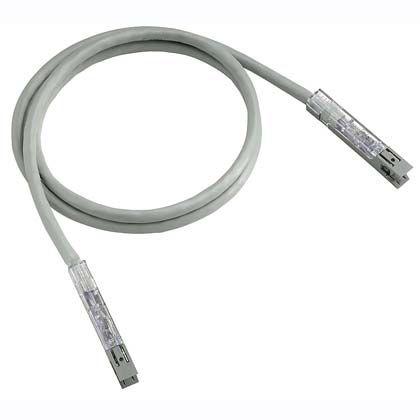

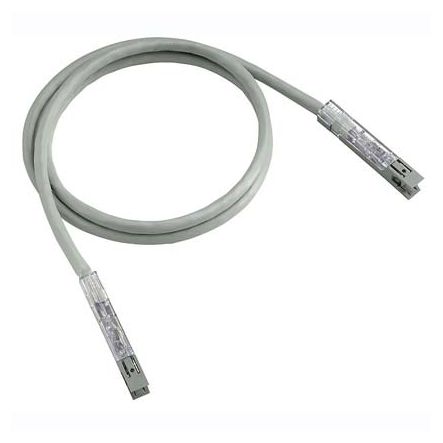

Panduit P110PC2IG4Y | Pan-Punch Patch Cord Assembly
2-pair 110 connector on each end. Meets Category 5 performance requirements, 4 ft.
Panduit P110PC2IG4Y Panduit P110pc2ig4y Patch Cord
Specifications
Specifications
Panduit - P110PC2IG4Y - Product Categories
- Copper Systems
- Patch Cords
Panduit - P110PC2IG4Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P110PC2IG4Y |
| Item Description | Pan-Punch Patch Cord Assembly |
| Application | Used in both voice networks and data local area networks designed for use with unshielded twisted pair copper wire and cable. |
| Product Type | Patch Cord Assembly |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Performance Level | Category 5 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | 2-Pair 110 Connector |
| Connector 2 Type | 2-Pair 110 Connector |
| Overall Length (ft.) | 4 |
| Sub Brand | Pan-Punch |
| Color | International Gray |
| Standards Met | Exceeds all channel and component requirements of ANSI/TIA-568-C.2 Category 5e standard; Meets IEC 60352-4 requirements; IDC connection per TIA-568 requirements; RoHS Compliant |
| IEC Variant | 60352-4 |
| Part Features | Deeper cable channel in the base, Rounded edges on jumper trough, Field terminable patch cord connector, Metal contact retention in connecting block, Legs are molded as part of the base, Base has TIP colors on wire strip and Connecting block has RING colors for wiring identification |
Panduit - P110PC2IG4Y - Package Information
| UPC | 07498305699 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1755 |
