Panduit P12-10HDR-D | Pan-Term Ring Terminal
Description
Description
Our non-insulated ring terminal handles high-vibration environments, extra-thick construction, secure ring tongue design, and strong internal grip for reliable connections.

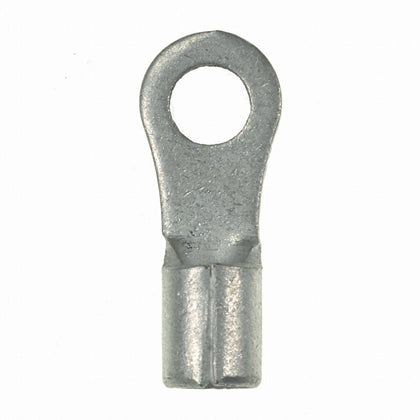

Ring Terminal, 16-12 AWG, #10 stud size, heavy duty, non-insulated, bulk package.
Panduit Pan-Term Terminal, Type P-HDR Heavy-Duty, Solid/Stranded Conductor, 16 to 12 AWG Conductor, #10 Stud, 0.81 in Length, Brazed Seam/Standard Barrel, 0.12 in ID x 0.22 in OD Barrel, Ring Tongue, 0.37 in W x 0.05 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.36 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Panduit - P12-10HDR-D - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - P12-10HDR-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P12-10HDR-D |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 12 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 12 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.37 |
| Outer Diameter (mm) | 9.4 |
| UPC | 07498380281 |
