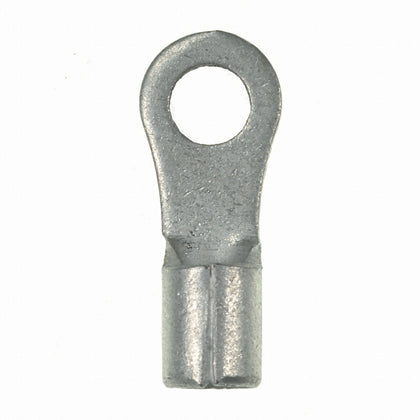

Panduit P12-8HDR-D | Ring Terminal | UPC - 07498380279
Regular price
$230.14
Unit price
Brand: Panduit
|
SKU:
10044597
Regular price
$230.14
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-HDR Heavy-Duty, Solid/Stranded Conductor, 16 to 12 AWG Conductor, #8 Stud, 0.78 in Length, Brazed Seam/Standard Barrel, 0.12 in ID x 0.22 in OD Barrel, Ring Tongue, 0.31 in W x 0.05 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.36 in Clearance, 302 deg F, Copper, Tin Plated, Silver
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit P12-8HDR-D | Ring Terminal | UPC - 07498380279 Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Size | #8 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CT-100, CT-200,CT-570, CT-1570 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Silver |
Panduit Panduit P12-8HDR-D | Ring Terminal | UPC - 07498380279 Environmental Information
| Panduit's RoHS Statement | Download and View |
