Panduit P14-10FN-C | Loose Piece Forks | UPC - 07498380856
Regular price
$40.76
Unit price
Brand: Panduit
|
SKU:
10044443
Regular price
$40.76
Unit price
Description
Description

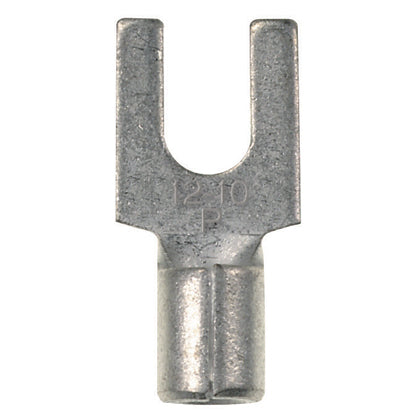

Fork Terminal, non-insulated, 16- 14 AWG, #10 stud size, narrow tongue, standard package.
Panduit Panduit P14-10FN-C | Loose Piece Forks | UPC - 07498380856 Key Specs
| Fork Type | Narrow Fork |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P14-10FN-C | Loose Piece Forks | UPC - 07498380856 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - P22-2F-C Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #18-14 Barrel Non-Insulated Fork | Download and View |
Panduit Panduit P14-10FN-C | Loose Piece Forks | UPC - 07498380856 Environmental Information
| Panduit's RoHS Statement | Download and View |
