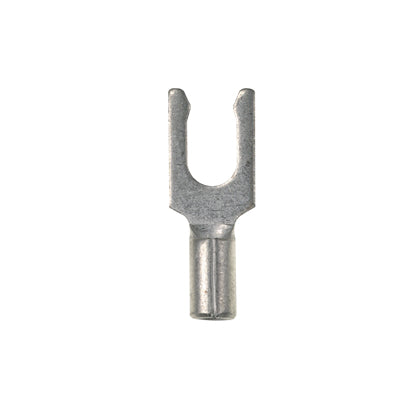

Panduit P14-10LFN-C | Loose Piece Forks | UPC - 07498380858
Regular price
$65.28
Unit price
Brand: Panduit
|
SKU:
10044447
Regular price
$65.28
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-LFN, Stranded Copper Conductor, 18 to 14 AWG Conductor, #10 Stud, 0.77 in Length, Brazed Seam Barrel, 0.09 in ID x 0.16 in OD Barrel, Narrow Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.27 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit Panduit P14-10LFN-C | Loose Piece Forks | UPC - 07498380858 Key Specs
| Fork Type | Locking Fork Narrow |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H, E52164 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P14-10LFN-C | Loose Piece Forks | UPC - 07498380858 Environmental Information
| Panduit's RoHS Statement | Download and View |
