Brand: Panduit
|
SKU:
P14-10R-C
Panduit P14-10R-C | Pan-Term P14-10R-C Ring Terminal, Bare, 14-18 Awg, #10 Stud, Pk100
Regular price
$48.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P14-10R-C | Pan-Term P14-10R-C Ring Terminal, Bare, 14-18 A...
Regular price
$48.31
Unit price
Description
Description
Panduit P14-10R-C | Pan-Term P14-10R-C Ring Terminal, Bare, 14-18 Awg, #10 Stud, Pk100

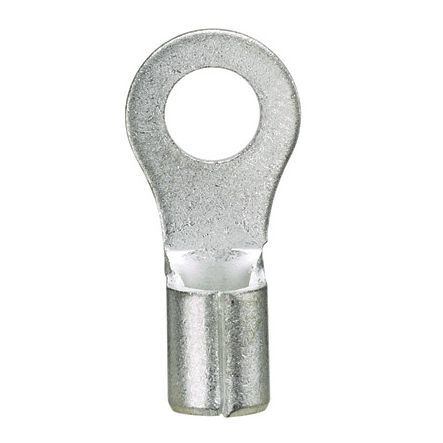

The P14-10R-C Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - P14-10R-C - Features
- Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #10 Stud, 0.71 in Length, Brazed Seam/Serrated/Standard Barrel, 0.9 in ID x 0.16 in OD Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 1/4 in Clearance, 302 deg F, Copper, Tin Plated, Silver
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - P14-10R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P14-10R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P14-10R-C |
| Item Description | Pan-Term P14-10R-C Ring Terminal, Bare, 14-18 Awg, #10 Stud, Pk100 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.16 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 4.06 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| MPN: | P14-10R-C |
| Barrel Size: | 0.9 in ID x 0.16 in OD |
| Barrel Type: | Brazed Seam/Serrated/Standard |
| Color: | Silver |
| Conductor Size: | 18 to 14 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | Tin Plated |
| Length: | 0.71 in |
| Material: | Copper |
| Series: | P Series |
| Specifications: | 9/32 in L Wire Strip, 1/4 in Clearance |
| Stud Size: | #10 |
| Temperature Rating: | 302 deg F |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Type P-R |
| Voltage Rating: | 2000 VAC |
Panduit - P14-10R-C - Package Information
| UPC | 07498380220 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0040 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0398 |
