Brand: Panduit
|
SKU:
10044601

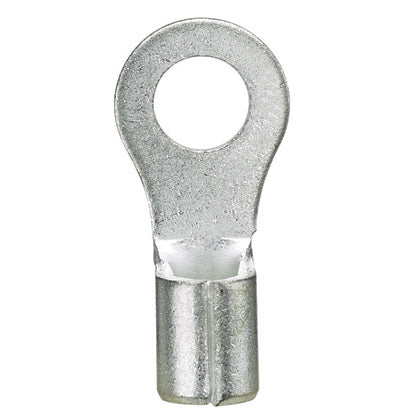

Panduit P14-12R-L | Ring Terminal | UPC - 07498391286
Regular price
$54.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P14-12R-L | Ring Terminal | UPC - 07498391286
Regular price
$54.82
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 1/2 in Stud, 1.2 in Length, Brazed Seam/Serrated/Standard Barrel, 0.9 in ID x 0.16 in OD Barrel, Ring Tongue, 0.72 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.53 in Clearance, 302 deg F, Copper, Tin Plated, Silver
- Self insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- On Mylar tape
Panduit Panduit P14-12R-L | Ring Terminal | UPC - 07498391286 Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Size | 1/2" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Silver |
Panduit Panduit P14-12R-L | Ring Terminal | UPC - 07498391286 Environmental Information
| Panduit's RoHS Statement | Download and View |
