Panduit P14-38R-C | Pan-Term P14-38R-C Ring Terminal
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
PAN-P14-38R-EA
Regular price
$1.46
Unit price
Description
Description

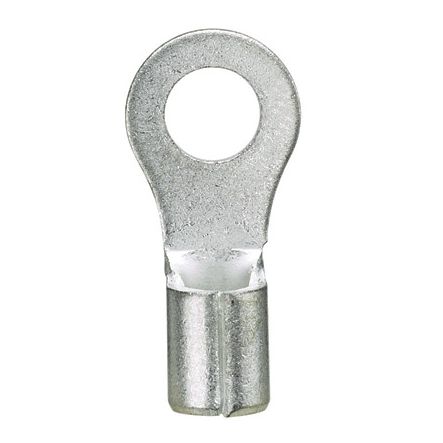

Panduit P14-38R-C | Pan-Term P14-38R-C Ring Terminal
Ring Terminal, 18 – 14 AWG, 3/8" stud size, non-insulated, standard package.
Panduit P14-38R-C - TERMINAL-RING - RING TERMINAL NON-INSULATED
Specifications
Specifications
Panduit - P14-38R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P14-38R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P14-38R-C |
| Item Description | Pan-Term P14-38R-C Ring Terminal |
| Stud Hole Size (In.) | 3/8" |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.16 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 4.06 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 0.53 |
| Overall Width (mm) | 13.5 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.53 |
| Tongue Width (mm) | 13.5 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P14-38R-C - Package Information
| UPC | 07498380226 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0063 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0626 |
