Panduit P14-56R-M | Ring Terminal | UPC - 07498380225
Regular price
$302.61
Unit price
Brand: Panduit
|
SKU:
894010
Regular price
$302.61
Unit price
Description
Description

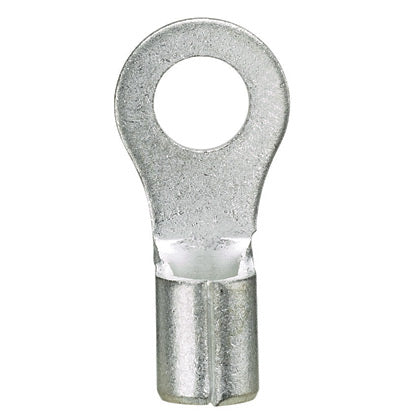

Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 5/16 in Stud, 0.91 in Length, Brazed Seam/Serrated/Standard Barrel, 0.9 in ID x 0.16 in OD Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.38 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit P14-56R-M Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Size | 5/16" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Silver |
Panduit P14-56R-M Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - D18-187-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4130508 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
